Digital Pathology Slide Scanners

A table comparing the facets of 4 products

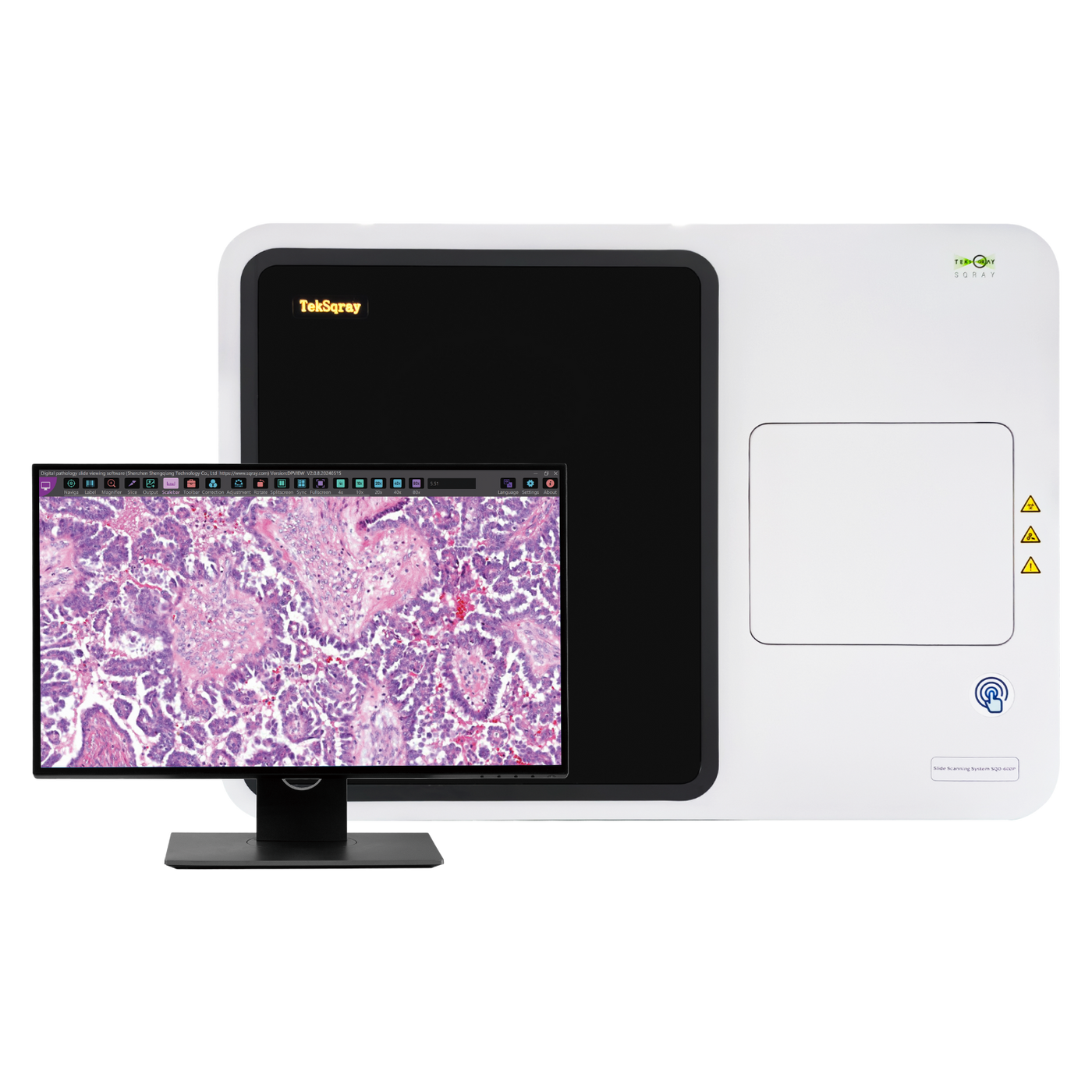

Facet	SQD 600P Digital Pathology Slide Scanner View details	SQS 120P Digital Pathology Slide Scanner View details	SQD 40P Digital Pathology Slide Scanner View details	SQD 12P Digital Pathology Slide Scanner View details
Capacity
Capacity	Up to 600 slides	Up to 120 slides	Up to 40 slides	Up to 12 slides
Magnification
Magnification	20x and 40x	20x and 40x	20x and 40x	20x
Throughput
Throughput	Up to 80 slides/hour	Up to 40 slides/hour	Up to 30 slides/hour	Up to 30 slides/hour
Scanning Speed
Scanning Speed	<13.5 Seconds Under 20x; <31.5 Seconds Under 40x (15mm×15mm)	<37 Seconds Under 20x; <123 Seconds Under 40x (15mm×15mm)	<41 Seconds Under 20x; <135 Seconds Under 40x (15mm×15mm)	<35 Seconds Under 20x; (15mm×15mm)
Resolution
Resolution	20x: 0.194μm/Pixel 40x: 0.098μm/Pixel	20x: 0.208μm/Pixel 40x: 0.105μm/Pixel	20x: 0.168μm/Pixel 40x: 0.085μm/Pixel	20x: 0.38μm/Pixel 40x: 0.19μm/Pixel
Objective Lens
Objective Lens	NA 0.8 For 20x NA 0.95 For 40x	NA 0.8 For 20x NA 0.95 For 40x	NA 0.8 For 20x NA 0.95 For 40x	NA 0.8 For 20x
Image Output
Image Output	.sdpc or DICOM	.sdpc or DICOM	.sdpc or DICOM	.sdpc or DICOM
Rack Compatibility
Rack Compatibility	TEKSQRAY Sakura 4768 20-slides basket/rack	TEKSQRAY Sakura 4768, 20-slides basket/rack	TEKSQRAY Sakura 4768 20-slides basket/rack	TEKSQRAY Sakura 4768 20-slides basket/rack
Dimensions
Dimensions	930×685×777mm	635×595×570mm	640×550×430mm	480×490×540mm
Weight
Weight	150kg	83kg	78kg	49kg
