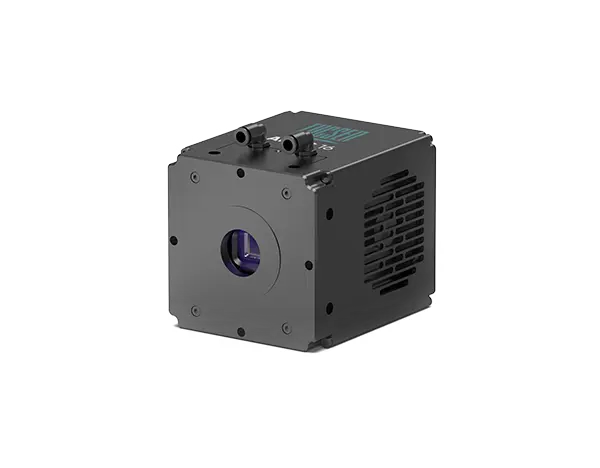

Aries 16 sCMOS Camera

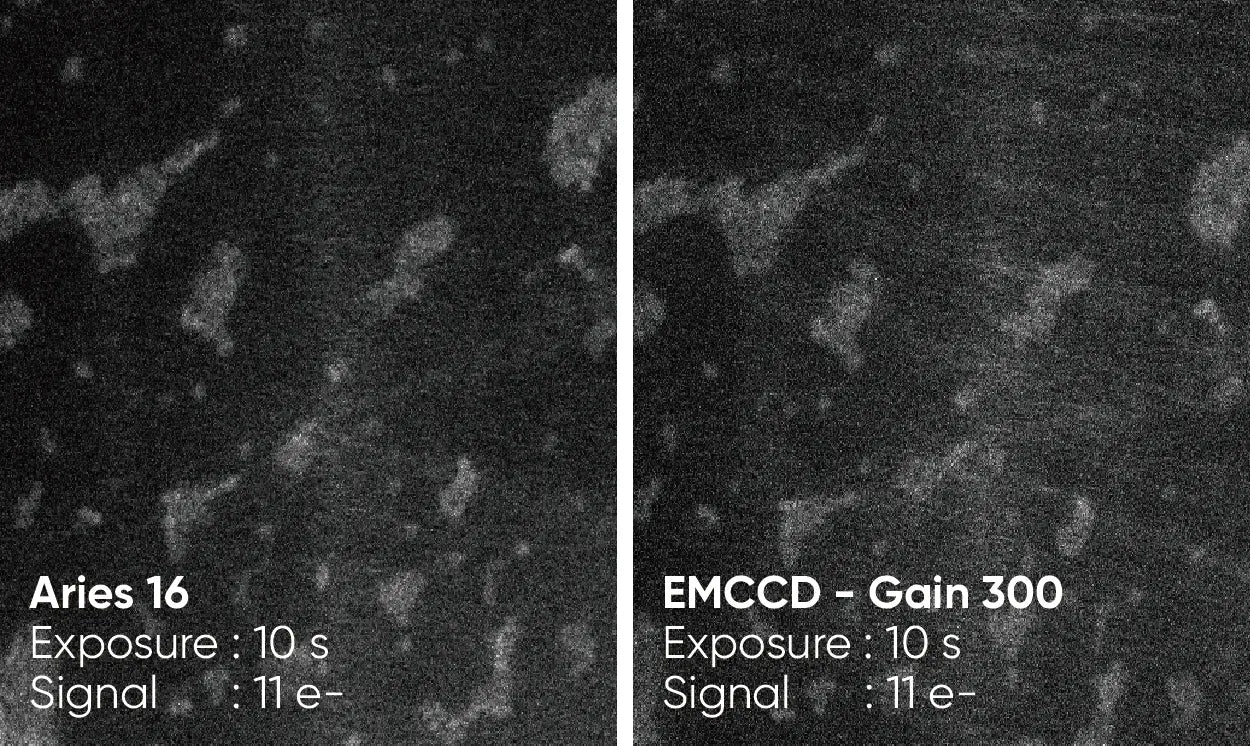

The Aries 16 is a new generation of BSI sCMOS camera developed exclusively by Tucsen Photonics. With sensitivity which matches EMCCD and surpasses binned sCMOS combined with high full well capacity normally observed in large format CCD cameras, the Aries 16 provides a fantastic solution for both low-light detection and high-dynamic range imaging.

• Color / Mono: Mono

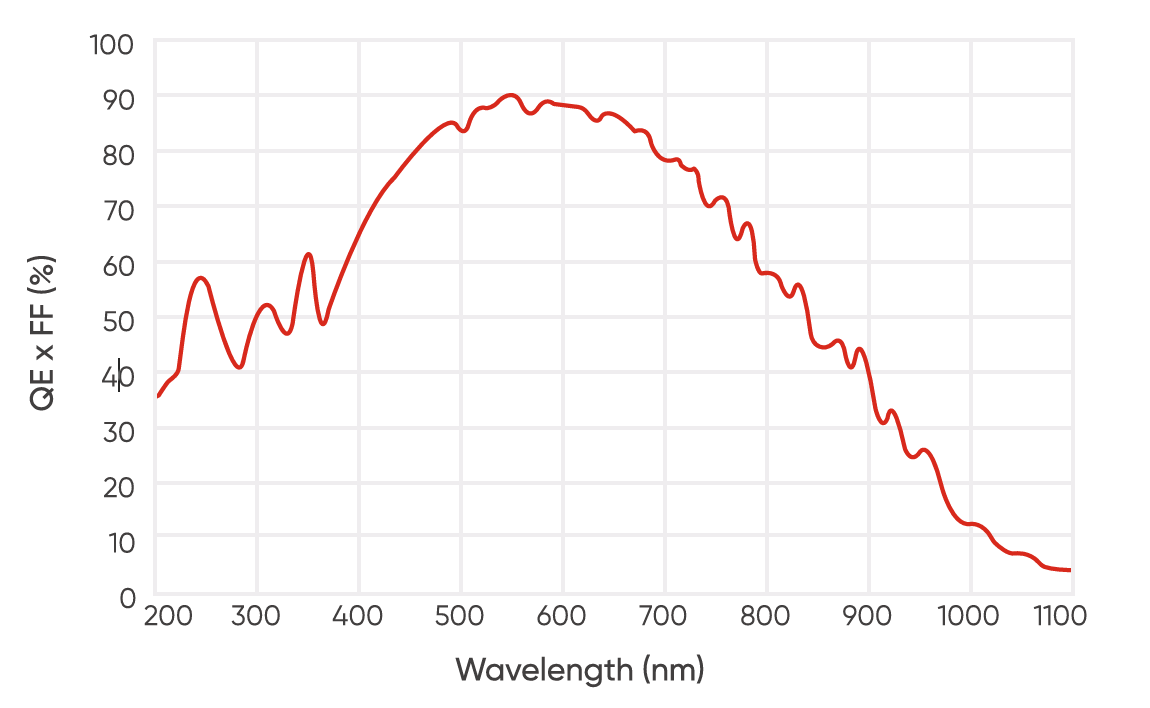

• Peak QE: 90.7% @ 550 nm
• Resolution: 800 (H) × 600 (V)
• Array Diagonal: 16 mm

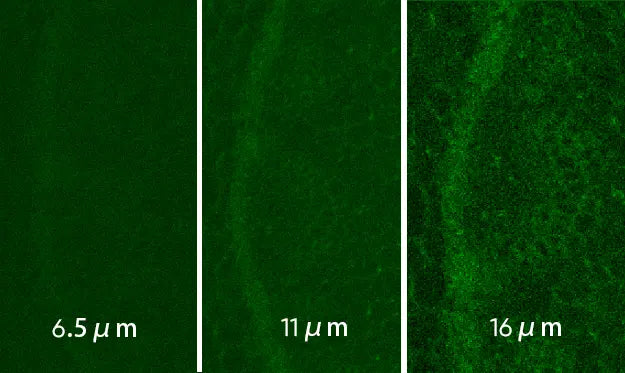

• Pixel Size: 16 μm x 16 μm
• Effective area: 12.8 mm x 9.6 mm
• Full well capacity: Typ.: 73 ke-
• Dynamic Range: Typ.: 94.8 dB
• Frame Rate: 60 fps @ HDR mode, 25 fps @ Low noise mode
• Readout noise: Typ.: 1.6 e- @ HDR mode, 0.9 e- @ Low noise mode
• Shutter Type: Rolling / Global reset
• Exposure Time: 26 µs ~ 60 s
• DSNU: 0.3 e-
• PRNU: 0.30%
• Cooling Method: Air, Liquid
• Cooling Temperature: Air: 50 °C below ambient, Liquid: 60 °C below ambient
• Dark current: 0.2 e- / pixel / s
• Binning: 2 x 2, 4 x 4, Free binning
• ROI: Support
• Trigger Mode: Hardware, Software
• Output Trigger Signals: Exposure start, Global, Readout end, High level, Low level
• Trigger Interface: SMA
• Timestamp: Support
• Data Interface: USB 3.0 & CameraLink
• SDK: C , C++ , C#，Python
• Bit Depth: 12bit & 16bit
• Optical Interface: C-mount
• Power: 12V / 8A
• Power Consumption: 38 W
• Dimensions: 95 mm x 95 mm x 114 mm
• Weight: 1500g
• Software: Mosaic 3.0 , SamplePro , LabVIEW , MATLAB , Micro-Manager 2.0
• Operating System: Windows
• Operating Environment: Working: Temperature 0~40 °C, Humidity 0~85%
  Storage: Temperature 0~60 °C, Humidity 0~90%
