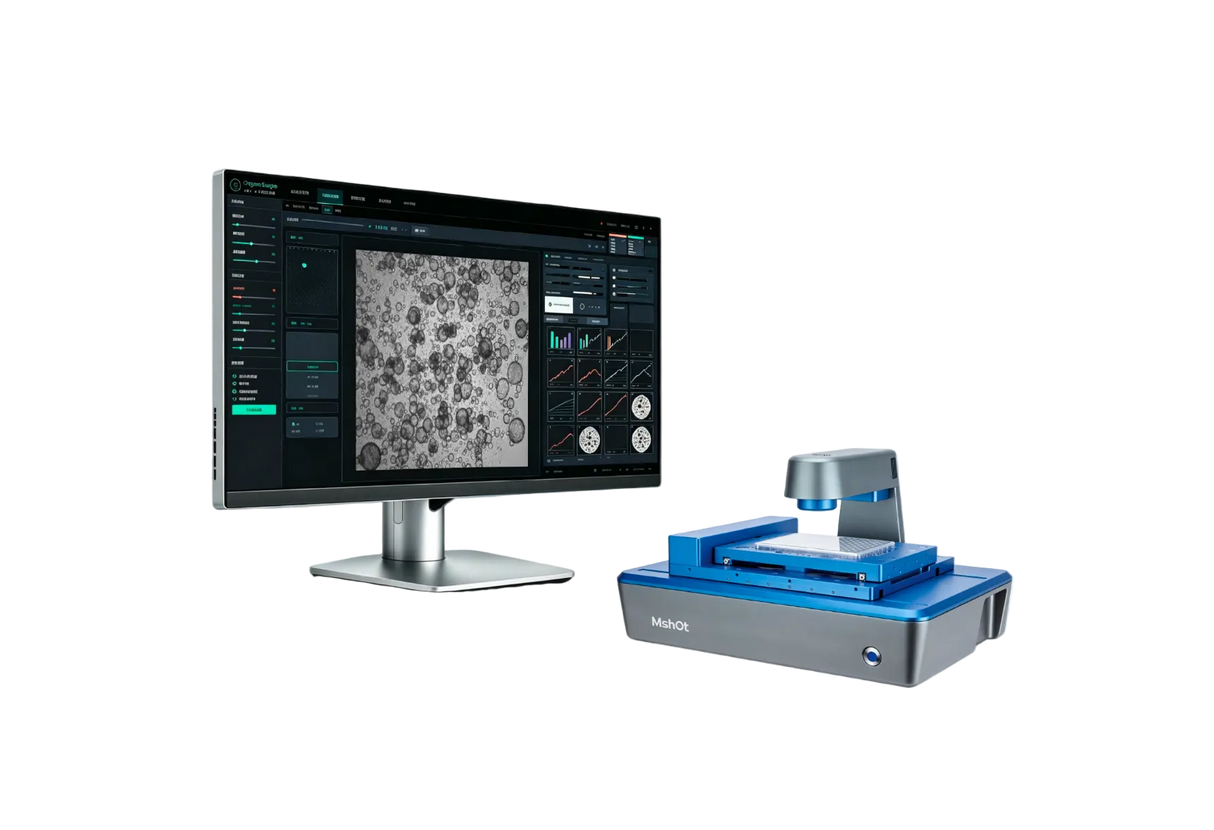

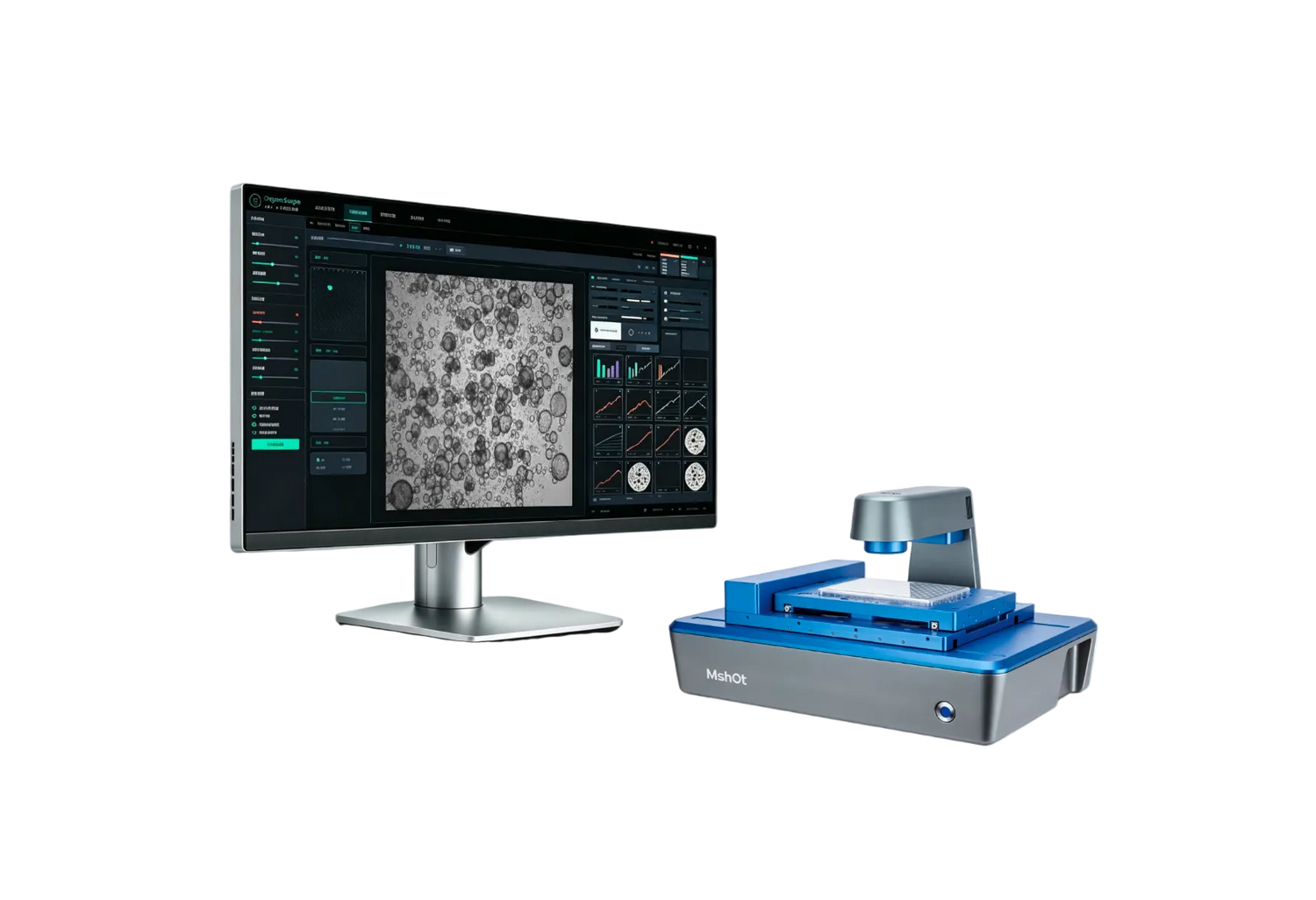

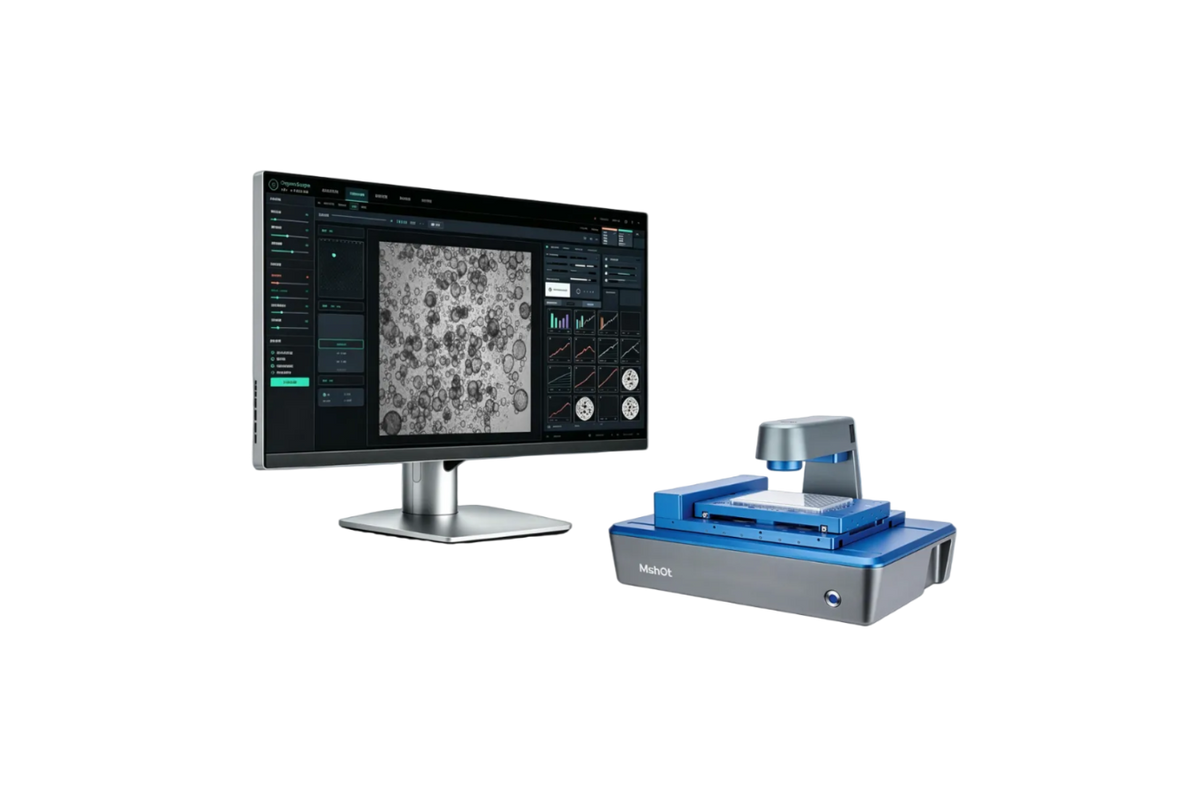

MCS31 Organoid Imaging and Analysis System
MCS31 Organoid Imaging and Analysis System - 20x is backordered and will ship as soon as it is back in stock.
Description
Description
MCS31 Organoid imaging and analysis system is an excellent companion for 3D cell culture research. It provides a unique screening tool for capturing the complex, 3D spatial organization, cellular dynamics, and functional properties of miniature tissues, such as organoid and spheroid.
| Specifications: | |
| Transmitted Observation | Transmitted bright field / phase contrast illumination, working distance 55mm |
| 50,000 – hour long lifespan, 625nm LED light source | |
| 3 Channel Fluorescence Observation (Wavelengths Customizable) |
Green (G) + Red (R) + Near Infrared (NIR) |
| Blue (B) or Orange (O) | |
| Objective Lenses | Select any two from 4×/10×/20× objective lenses; Motorized objective lens switching |
| XY Stage | Motorized XY moving platform with a stroke of 115*77mm; Repeat positioning accuracy ≤ 3μm |
| Z Axis | Motorized with auto-focus mechanism |
| Vessel Types |
Chamber slide, Well plate: 6, 12, 24, 48, 96 and Petri Dish |
| Camera |
High speed and high sensitivity camera, 5M 2/3 inch, 40fps |
| Software |
The acquisition software supports advanced Z-stack depth-of-field compositing technology, which scans layer by layer along the Z-axis and automatically merges multiple images captured at different focal planes, effortlessly capturing a complete 3D view of the organoid. It adopts 625nm red light protection technology which significantly reduces phototoxicity and minimizes the impact of illumination on organoid viability, supporting long-term continuous observation. |
| Analysis Function | Multi-dimensional analysis metrics including organoid area, diameter, circularity, eccentricity, concavity area, and aspect ratio to automatically generate organoid growth curves, IC50 values, and group comparison data, with support for one-click export of standardised research reports. |
| Scanning Function | - Multi well imaging and multi position imaging with bright field, phase contrast & multi-channel fluorescence overlay |
| - Multi area scanning, imaging and stitching with bright field, phase contrast & multi-channel fluorescence overlay | |
|
Data Transmission and Power Supply |
USB data cable + DC power cable |
| Working Environment | 5 – 40°C, 20 – 95% RH |
| Dimensions | 252mm × 377mm × 208mm |
