Description
Description
The Aries 6506 achieves perfect combination of sensitivity, large FOV and high speed performance. Its 22mm imaging diagonal is optimized for standard microscope optics and delivers full-resolution output at up to 200fps@5.8MP. With multiple readout modes and a reliable high-speed interface, it excels in live-cell imaging and fast dynamic applications requiring high frame rates.
Aries 6506:
- Sensor Type: BSI sCMOS
- Sensor Model: Gpixel GSENSE 6510BSI
- Peak QE: 95%
- Color/Mono: Mono
- Array Diagonal: 22 mm
- Effective Area: 15.7 mm x 15.7 mm
- Resolution: 2400 (H) x 2400 (V)
- Pixel Size: 6.5 μm x 6.5 μm

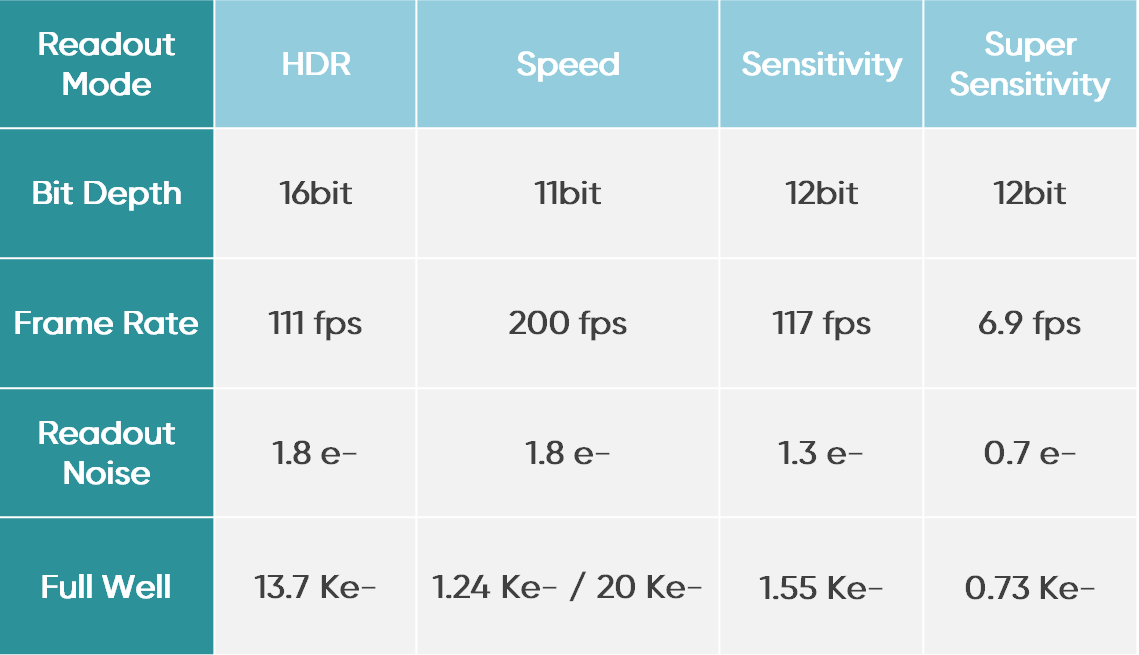

- Readout Mode: HDR, Speed, Sensitivity, Super sensitivity
- Bit Depth: 16 bit, 11 bit, 12 bit
- Frame Rate: 111 fps @ 16 bit HDR mode, 200 fps @ 11 bit Speed mode, 117 fps@ 12 bit Sensitivity mode, 6.9 fps @ 12 bit Super sensitivity mode
- Readout Noise :1.6 e-@ 16 bit HDR mode, 2.0 e- @ 11 bit Speed mode, 1.2 e-@ 12 bit Sensitivity mode, 0.7 e- @ 12 bit Super sensitivity mode
- Dark Current @ 0°C: 0.5 e-/p/s @ 16 bit HDR mode, 1 e-/p/s @ 11 bit Speed mode, 0.5 e-/p/s @ 12 bit Sensitivity mode, 0.5 e-/p/s @ 12 bit Super sensitivity mode
- Full Well Capacity:15,000 e- @ 16 bit HDR mode, 1,000 e- / 15,000 e- @ 11 bit Speed mode, 1,500 e- @ 12 bit Sensitivity mode, 1,000 e- @ 12 bit Super sensitivity mode
- Shutter Mode: Rolling
- Image Correction: DPC
- ROI: Support
- Binning (FPGA): 2 x 2, 4 x 4
- Cooling Method: Liquid Cooling , Air Cooling
- Cooling Temperature: Air: 0 °C @ 25 °C ambient, Liquid: -10 °C @ 20 °C liquid temprature
- Trigger Mode: Hardware, Software
- Output Trigger Signals: Exposure start, Global, Readout end, Trigger ready, Global reset, First row, Any row
- Trigger Interface: Hirose
- SDK: C / C++ / C# / Python

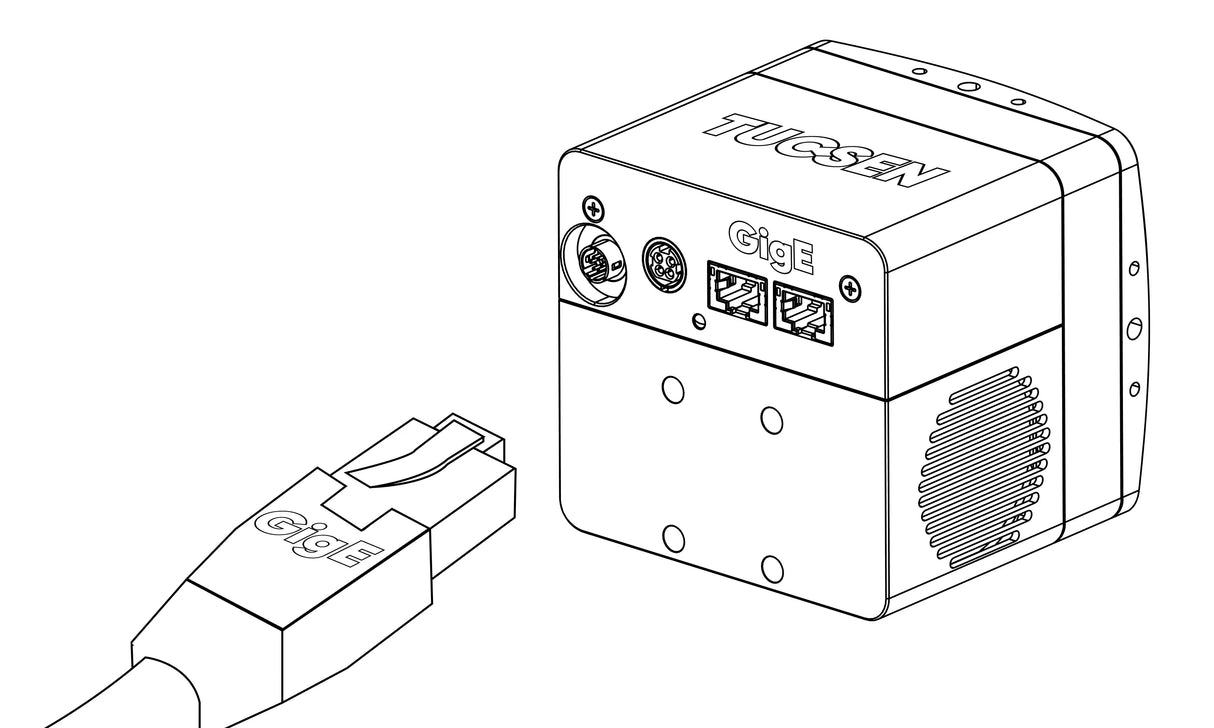

- Data Interface: 2x10G GigE
- Optical Interface: C Mount
- Power: 12 V / 8 A
- Power Consumption: ≤ 55 W
- Dimensions: 95 mm (H) x 100 mm (W) x 100 mm (L)
- Camera Weight: 1350g
- Operating System: Windows / Linux
- Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %；
Storage: Temperature -10~60 °C, Humidity 0~85 %
