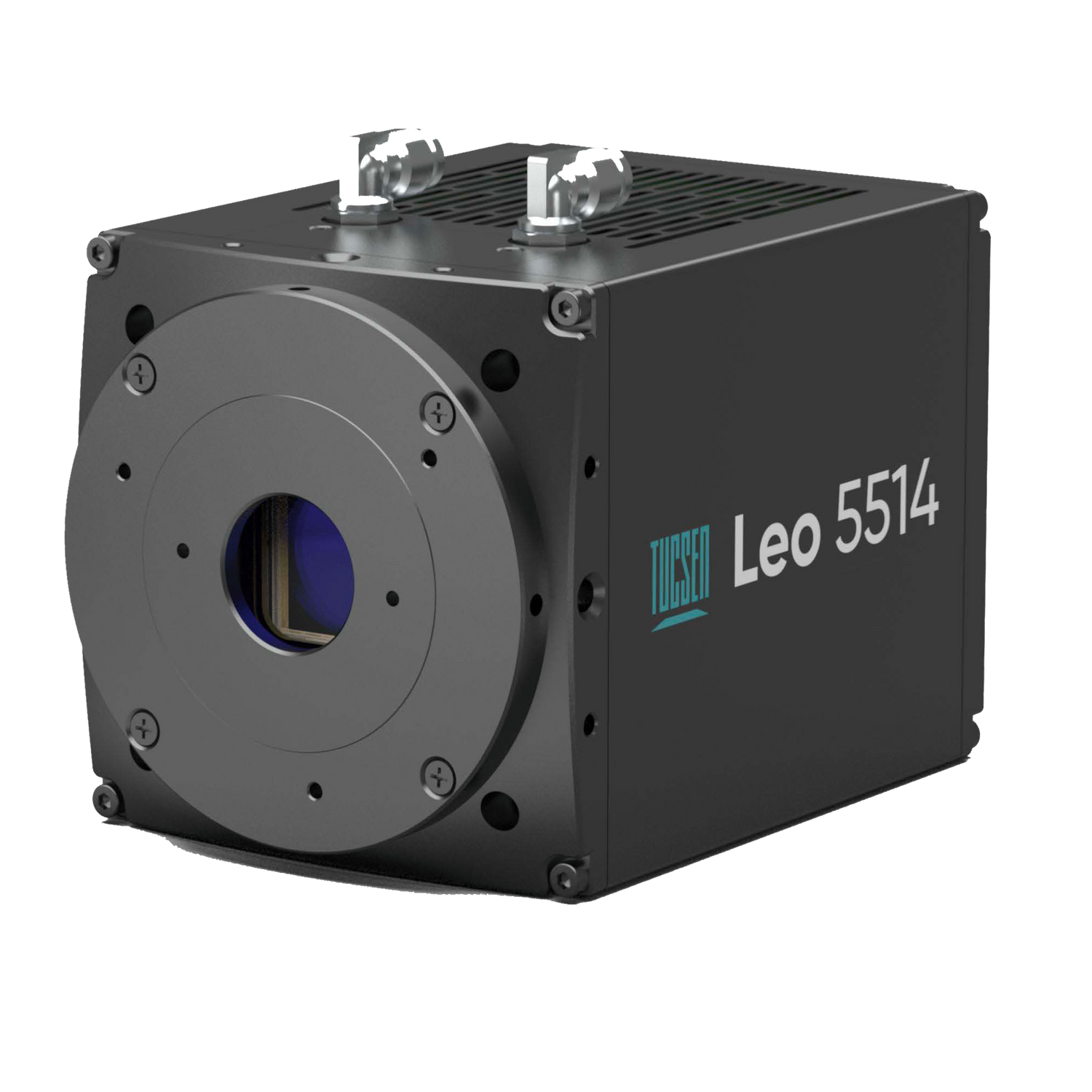

Leo 5514 Pro sCMOS Camera

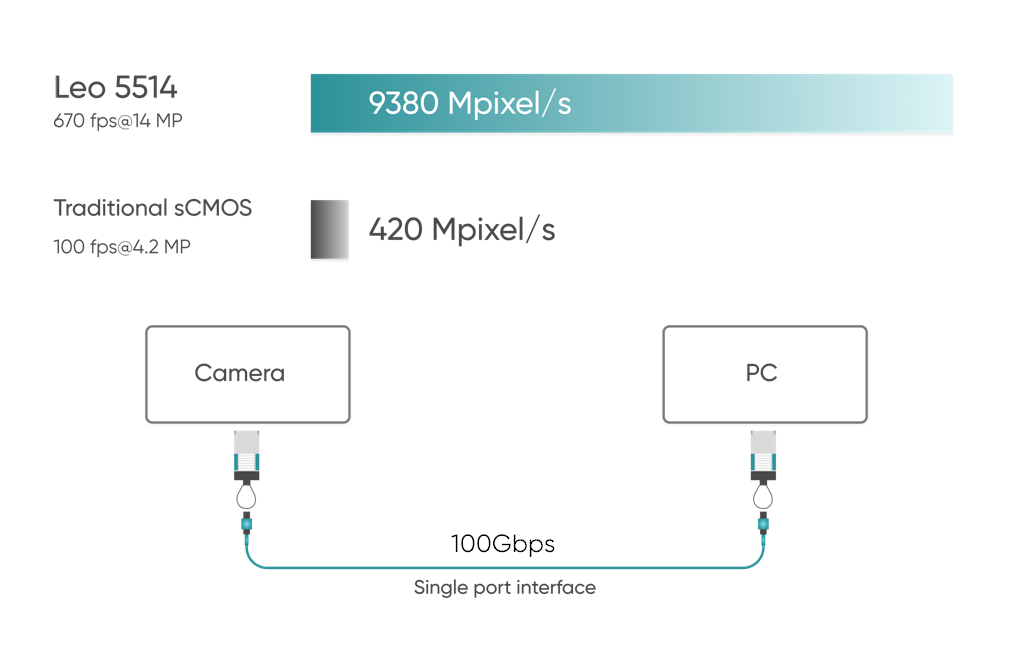

The LEO 5514 Pro is the industry’s first high-speed global shutter scientific camera, featuring a back-illuminated global shutter sensor with a peak quantum efficiency of up to 83%. With a 5.5 µm pixel size, it delivers outstanding sensitivity. Equipped with a 100G CoaXPress-over-Fiber (CoF) high-speed interface, the camera supports transmission at 670 fps with 8-bit depth. Its compact, low-vibration design makes it an ideal choice for high-throughput scientific imaging applications.

• Sensor Type: BSI sCMOS
• Sensor Model: GSPRINT5514BSI

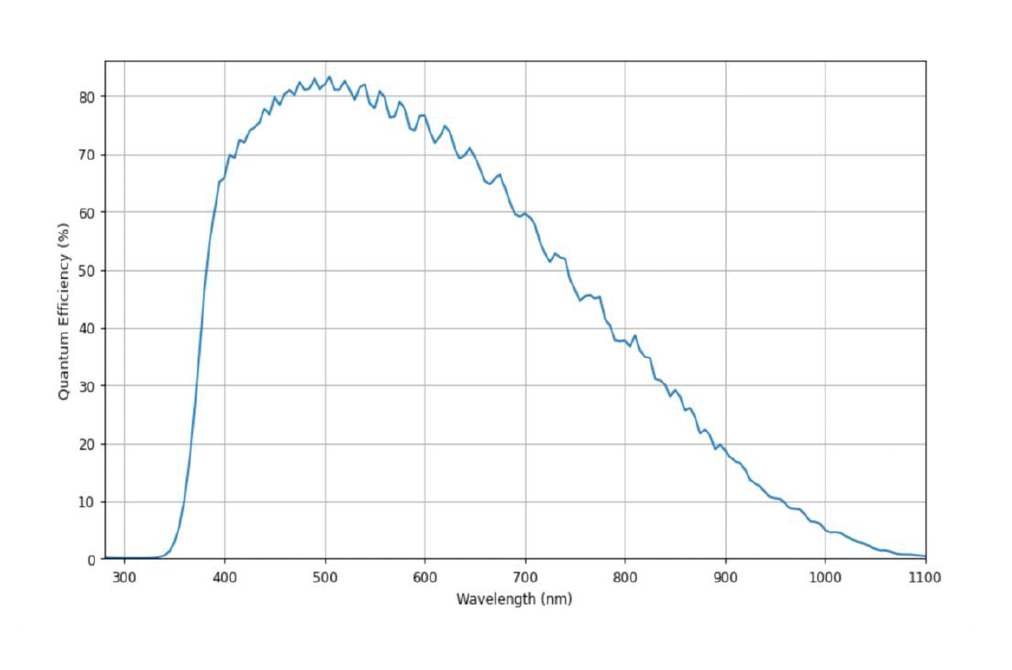

• Peak QE: 83%
• Color/Mono: Mono

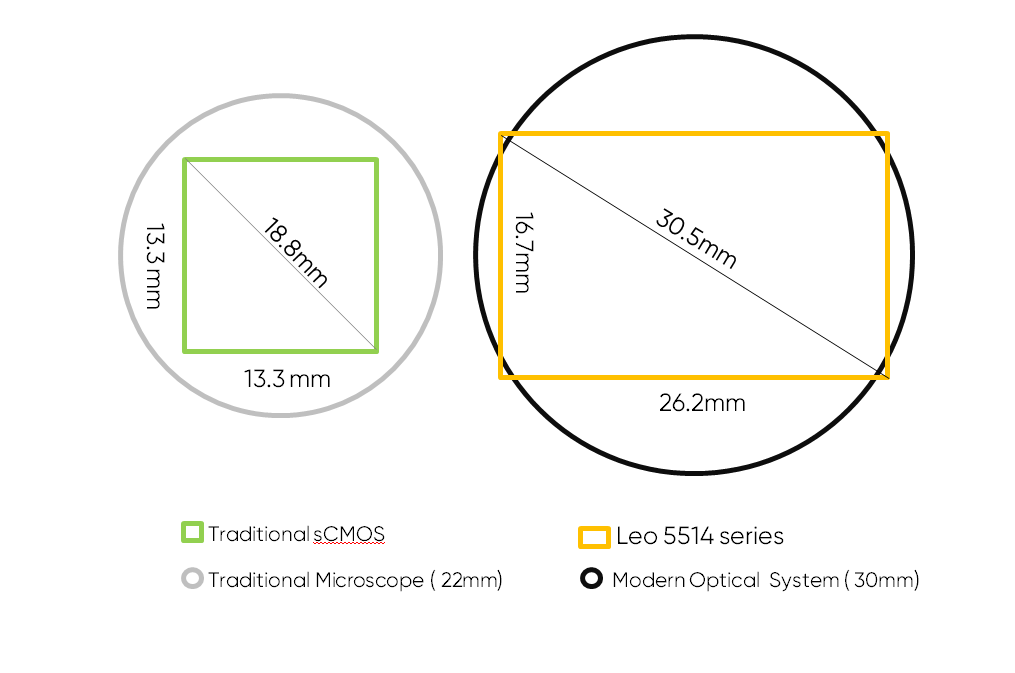

• Array Diagonal: 30.5 mm
• Effective Area: 25.34mm x 16.90mm
• Resolution: 4608 (H) x 3072 (V)
• Pixel Size: 5.5 μm x 5.5 μm
• Full-Well Capacity: 15 ke- @ HDR, 30 ke- @ After Binned
• Dynamic Range: 77.5 dB
• Exposure Time: 1us-10s
• Frame Rate: 80fps @ 16bit, 350fps @ 12bit, 480fps @10bit, 670fps @8bit
• Shutter Type: Global Shutter
• Readout Noise (median): <2 e- (HDR & Standard 12 bit Gain 4)
• Cooling Method: Air, Liquid
• Cooling Temperature: Air: 5℃ (ambient 25 ℃), Liquid: -5℃ (Water Temp. 20℃)
• Dark Current: <1 e-/pixel/s @-5℃, <5 e-/pixel/s @5℃
• Binning: 2 x 2, 4 x 4
• ROI: Support
• Timestamp Accuracy: 1 μs
• Trigger Mode: Hardware, Software
• Output Trigger Signals: High, Low, Readout End, Global Exposure, Exposure Start, Readout, Trigger Ready
• Trigger Interface: Hirose-12-pin
• Data Interface: 100G QSFP28
• Data Bit Depth: 12 bit, 16 bit
• Optical Interface: T/F/C-mount
• Power Supply: 24 V / 6.67 A
• Power Consumption: 120 W
• Dimensions: 95 mm H x 95 mm W x 123.6 mm L

• Weight: <2 kg
• Software: Mosaic V3, SamplePro, LabVIEW, MATLAB, Micro-Manager 2.0
• SDK: C, C++, C#
• Operating System: Windows, Linux
• Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85%
  Storage: Temperature 0~60 °C, Humidity 0~90%
