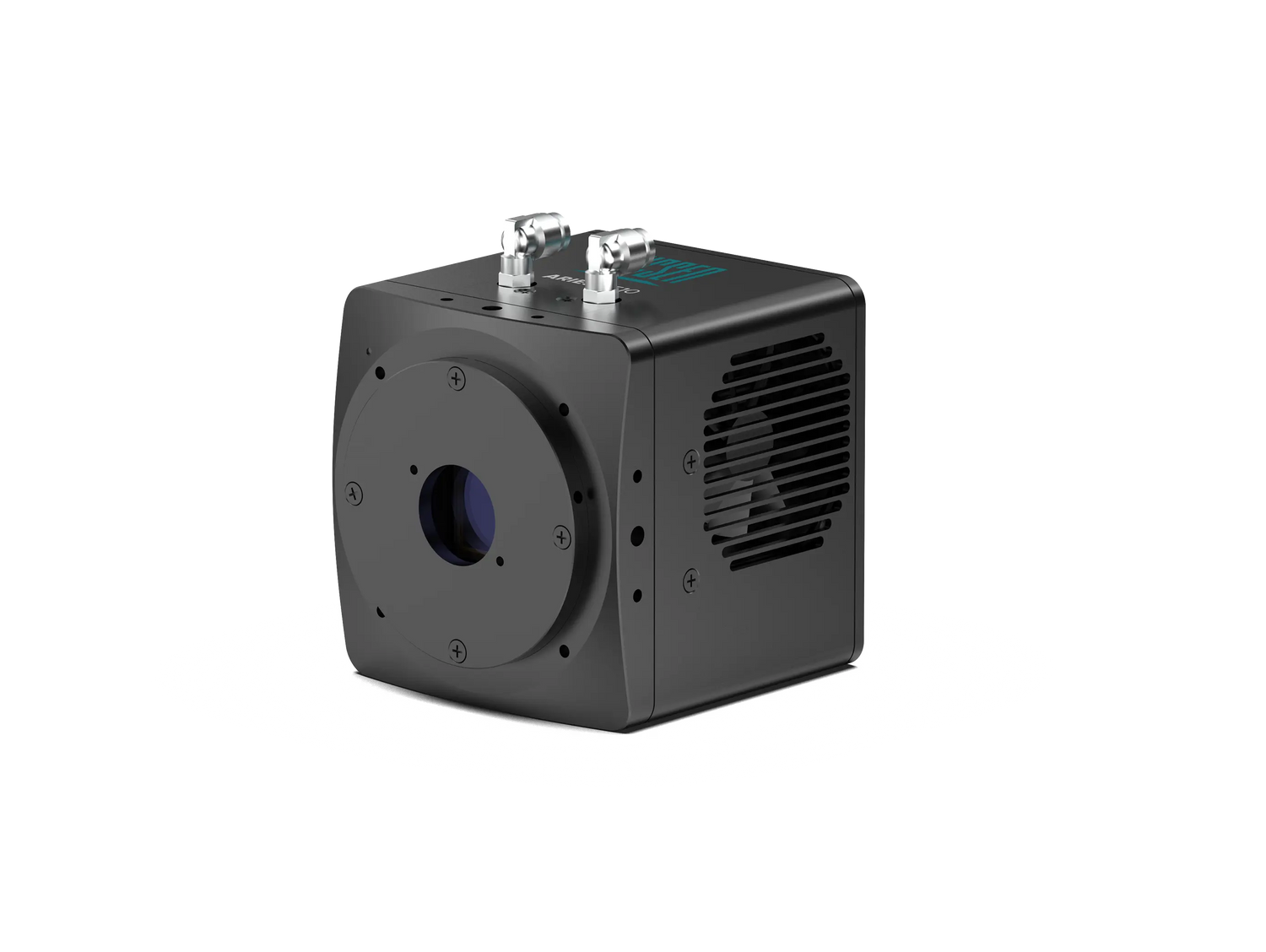

Aries 6506/6510 sCMOS Camera

The Aries 6506 and 6510 deliver a perfect combination of sensitivity, a large field of view (FOV), and high-speed performance. Their advantages stem not only from the Gpixel Gsense 6510BSI sCMOS sensor but also from the flexible readout modes and user-configurable structure, which are specifically designed for the most challenging scientific applications.

Aries 6506:

• Sensor Type: BSI sCMOS
• Sensor Model: Gpixel GSENSE6510BSI

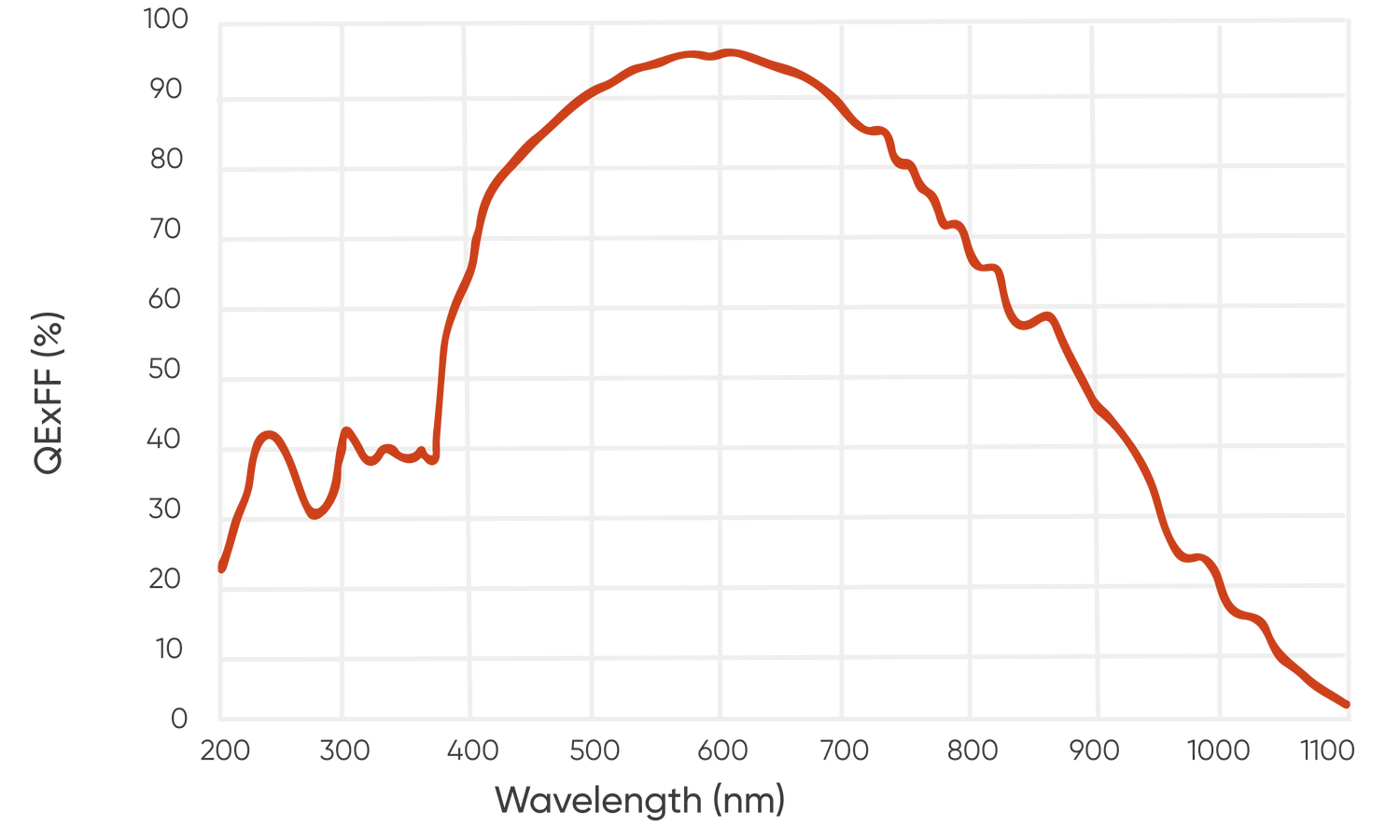

• Peak QE: 95%
• Chrome: Mono

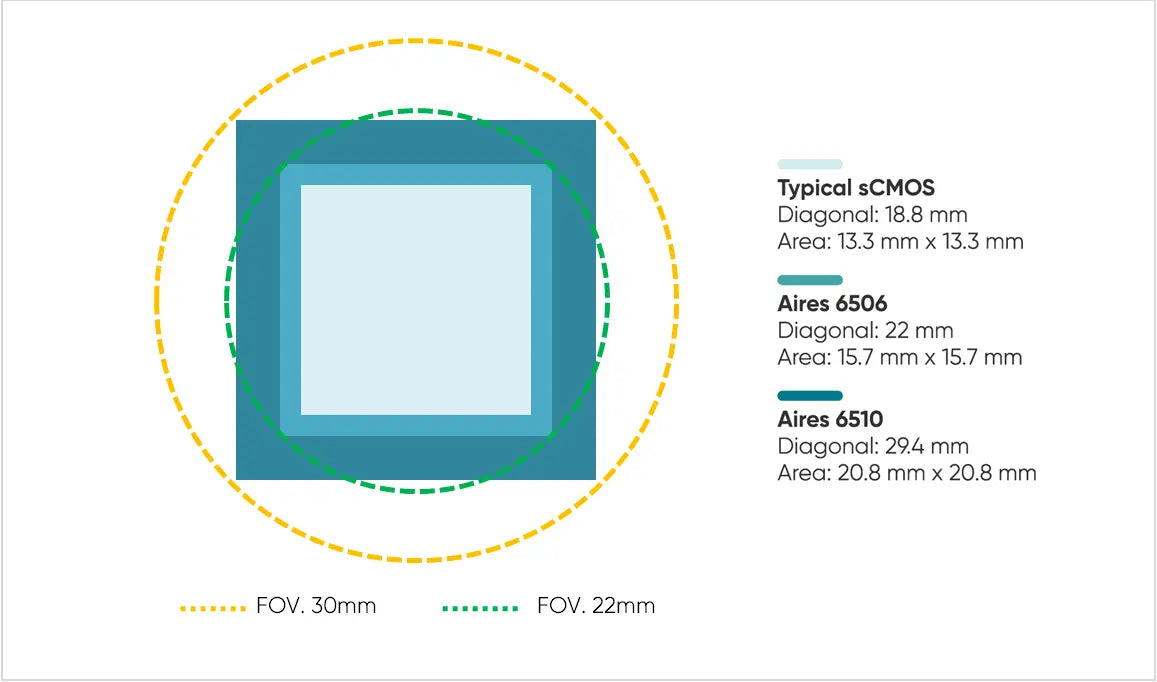

• Array Diagonal: 22 mm
• Effective Area: 15.7 mm x 15.7 mm
• Resolution: 2400 (H) x 2400 (V)
• Pixel Size: 6.5 μm x 6.5 μm
• Readout Mode: Dynamic: HDR
• Speed: High / Mid / Low gain
• Sensitivity: Standard / Low Noise
• Bit Depth: Dynamic: 16bit Speed: 11bit Sensitivity: 12bit
• Frame Rate: Dynamic: 111 fps @ HDR Speed: 200 fps @ High / Mid / Low gain
  Sensitivity: 117 fps @ Standard, 6.9 fps @ Low Noise
• Readout Noise: Dynamic: 1.8 e- @ HDR Speed:1.8 e- @ High gain, 3.6 e- @ Mid gain, 9.8 e- @ Low gain Sensitivity: 1.3 e- @ Standard, 0.7 e- @ Low Noise
• Full Well Capacity: Dynamic: 13.7 Ke- @ HDR Speed: 1.24 Ke- @ High gain, 4.5 Ke- @ Mid gain, 20 Ke- @ Low gain Sensitivity: 1.55 Ke-@ Standard, 0.73 Ke- @ Low Noise
• Dynamic Range: 77 dB @ Dynamic-HDR
• Shutter Mode: Rolling, Global Reset
• Exposure Time: 6 μs-10 s
• Cooling Method: Air, Liquid
• Cooling Temperature: Air: 0℃ (Ambient temperature 25℃), Liquid:-10℃ (Liquid temperature 20℃)
• Dark Current : 1.3 e-/pixel/s @ 0℃；0.6 e-/pixel/s @ -10℃
• Image Correction: DPC
• Binning: 2 x 2, 4 x 4
• ROI: Support
• Timestamp Accuracy: 1 μs
• Trigger Mode: Hardware, Software
• Output Trigger Signals: High, Low, Readout End, Global Exposure, Exposure Start, Trigger Ready, First Row, Any Row
• Trigger Interface: Hirose-6-pin

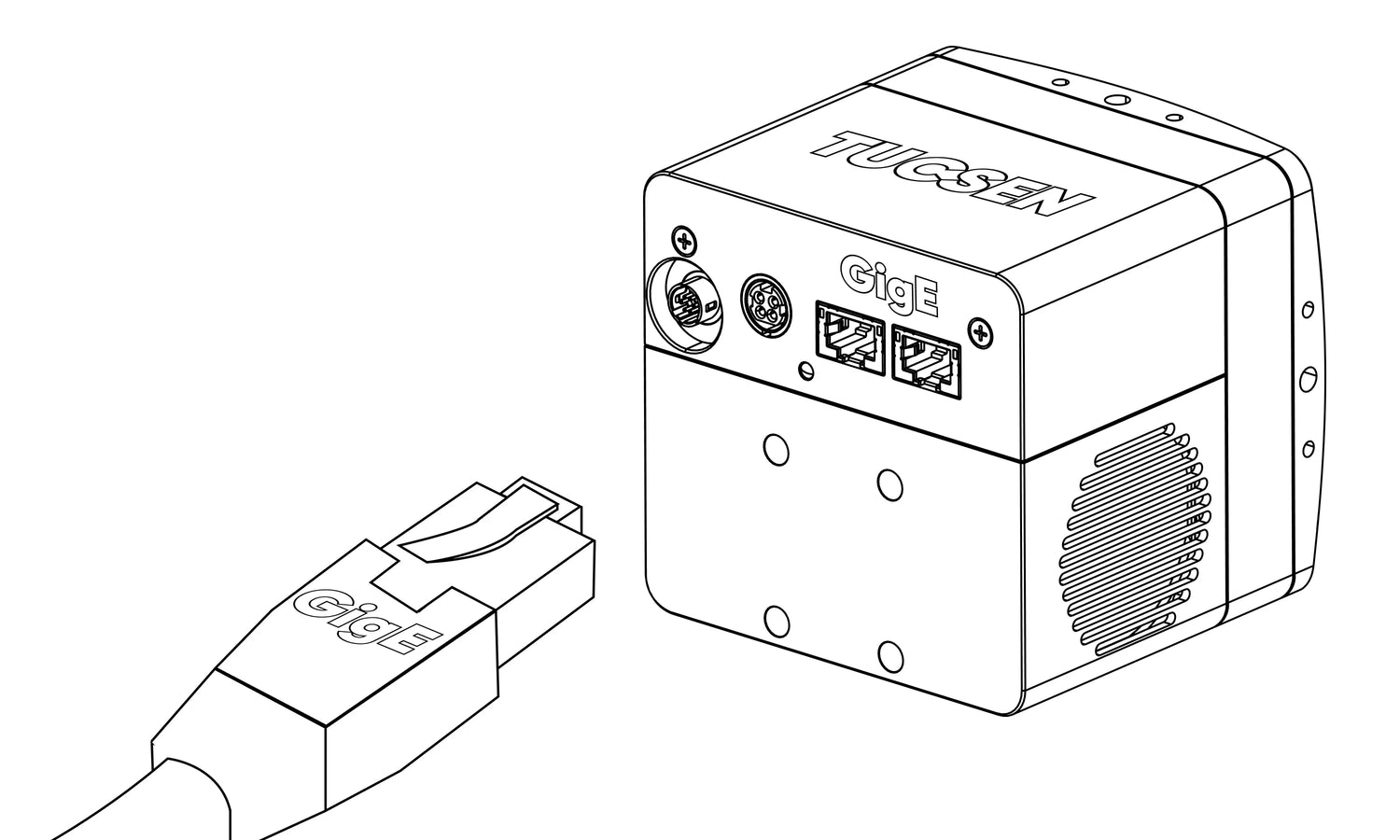

• Data Interface: 2 x 10 GigE
• Optical Interface: C Mount
• Power Supply: 12 V / 8.5 A
• Power Consumption: ≤ 55 W
• Dimensions: 95 mm (H) x 100 mm (W) x 100 mm (L)
• Camera Weight: 1350g
• Software: Mosaic V3, SamplePro, LabVIEW, MATLAB, Micro-manager 2.0
• SDK: C / C++ / C# / Python
• Operating System: Windows, Linux
• Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %；
  Storage: Temperature -10~60 °C, Humidity 0~85 %

Aries 6510:

• Sensor Type: BSI sCMOS
• Sensor Model: Gpixel GSENSE6510BSI
• Peak QE: 95%
• Chrome: Mono
• Array Diagonal: 29.4 mm
• Effective Area: 20.8 mm x 20.8 mm
• Resolution: 3200 (H) x 3200 (V)
• Pixel Size: 6.5 μm x 6.5 μm
• Readout Mode: Dynamic: HDR Speed: High / Mid / Low gain Sensitivity: Standard / Low Noise
• Bit Depth: Dynamic: 16bit Speed: 11bit Sensitivity: 12bit
• Frame Rate: Dynamic: 83 fps @ HDR Speed: 150 fps @ High / Mid / Low gain
  Sensitivity: 88 fps @ Standard，5.2 fps @ Low Noise
• Readout Noise : Dynamic: 1.8 e- @ HDR Speed:1.8 e- @ High gain, 3.6 e- @ Mid gain, 9.8 e- @ Low gain Sensitivity: 1.3 e- @ Standard, 0.7 e- @ Low Noise
• Full Well Capacity: Dynamic: 13.7 Ke- @ HDR Speed: 1.24 Ke- @ High gain, 4.5 Ke- @ Mid gain, 20 Ke- @ Low gain Sensitivity: 1.55 Ke-@ Standard, 0.73 Ke- @ Low Noise
• Dynamic Range: 77 dB @ Dynamic-HDR
• Shutter Mode: Rolling, Global Reset
• Exposure Time: 6 μs-10 s
• Cooling Method: Air, Liquid
• Cooling Temperature: Air: 0℃ (Ambient temperature 25℃), Liquid:-10℃ (Liquid temperature 20℃)
• Dark Current @ 0°C: 1.3 e-/pixel/s @ 0℃；0.6 e-/pixel/s @ -10℃
• Image Correction: DPC
• Binning: 2 x 2, 4 x 4
• ROI: Support
• Timestamp Accuracy: 1 μs
• Trigger Mode: Hardware, Software
• Output Trigger Signals: High, Low, Readout End, Global Exposure, Exposure Start, Trigger Ready, First Row, Any Row
• Trigger Interface: Hirose-6-pin
• Data Interface: 2 x 10 GigE
• Optical Interface: T / F / C Mount
• Power Supply: 12 V / 8.5 A
• Power Consumption: ≤ 55 W
• Dimensions: 95 mm (H) x 100 mm (W) x 100 mm (L)
• Camera Weight: 1350 g
• Software: Mosaic V3, SamplePro, LabVIEW, MATLAB, Micro-manager 2.0
• SDK: C / C++ / C# / Python
• Operating System: Windows / Linux
• Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %；
  Storage: Temperature -10~60 °C, Humidity 0~85 %
