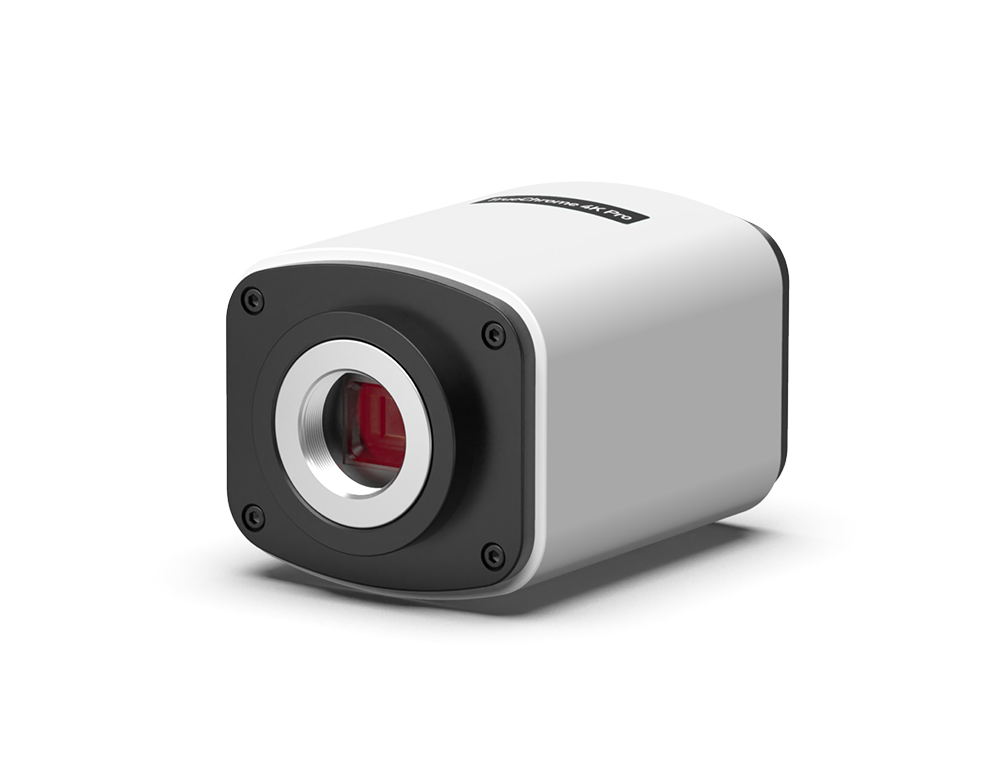

TrueChrome 4K Pro/WiFi Camera

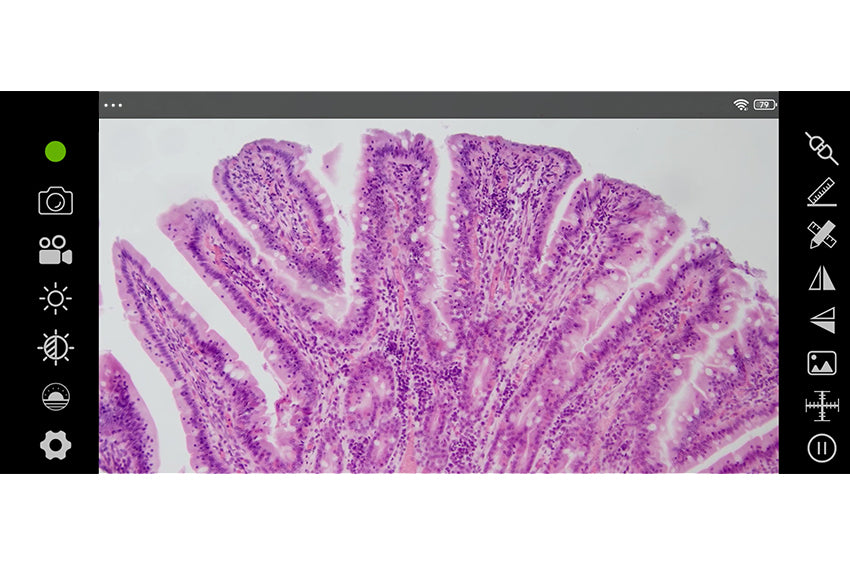

The TrueChrome 4K Pro/WiFi not only integrates the quick operation functions of HDMI cameras and the advanced image processing functions of USB3.0 cameras, but also adds Mosaic App software that supports Apple and Android systems. Through this App, users can directly shoot, measure and save images through wireless devices such as mobile phones/iPads, which is very suitable for remote interactive application scenarios such as microscopy teaching.

Specifications:

• Model: TrueChrome 4K (WIFI optional)
• Sensor Type: SONY IMX485
• Color/Mono: Color
• Array Diagonal: 13.33 mm (1/1.2")
• Resolution: 8MP, 3840(H) x 2160(V)
• Pixel Size: 2.9 μm (H) × 2.9 μm (V)
• Effective Area: 11.1 mm x 6.3 mm
• Shutter Mode: Rolling
• Frame Rate: 30 fps @ USB 3.0, 30 fps @ HDMI, 30 fps @ LAN
• Exposure Time: 1 μs - 1 s
• SD Format: FAT 32
• Color Temperature: 1800-10000K
• Software: HDMI: Cloud, USB: Mosaic V2 / Mosaic V3 / Mosaic App
• HDMI Key Settings:Preview: 3840 x 2160, Capture: 3840 x 2160, Vedio recording: 30 fps @ 3840 x 2160
• Picture Format: HDMI: JPG/TIF USB: TIFF/JPG/PNG/DICOM
• Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
• Optical Interface: Standard C Mount
• Power: 2.4 W
• Dimensions: 105.7 mm x 78 mm x 70.8 mm
• Weight: 505 g
• Data Interface: HDMI, USB3.0, USB2.0, LAN，Wi-Fi (optional)
• Operating Environment:Temperature: -10~45℃; Humidity: 10%~85%
• Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
• PC Configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
