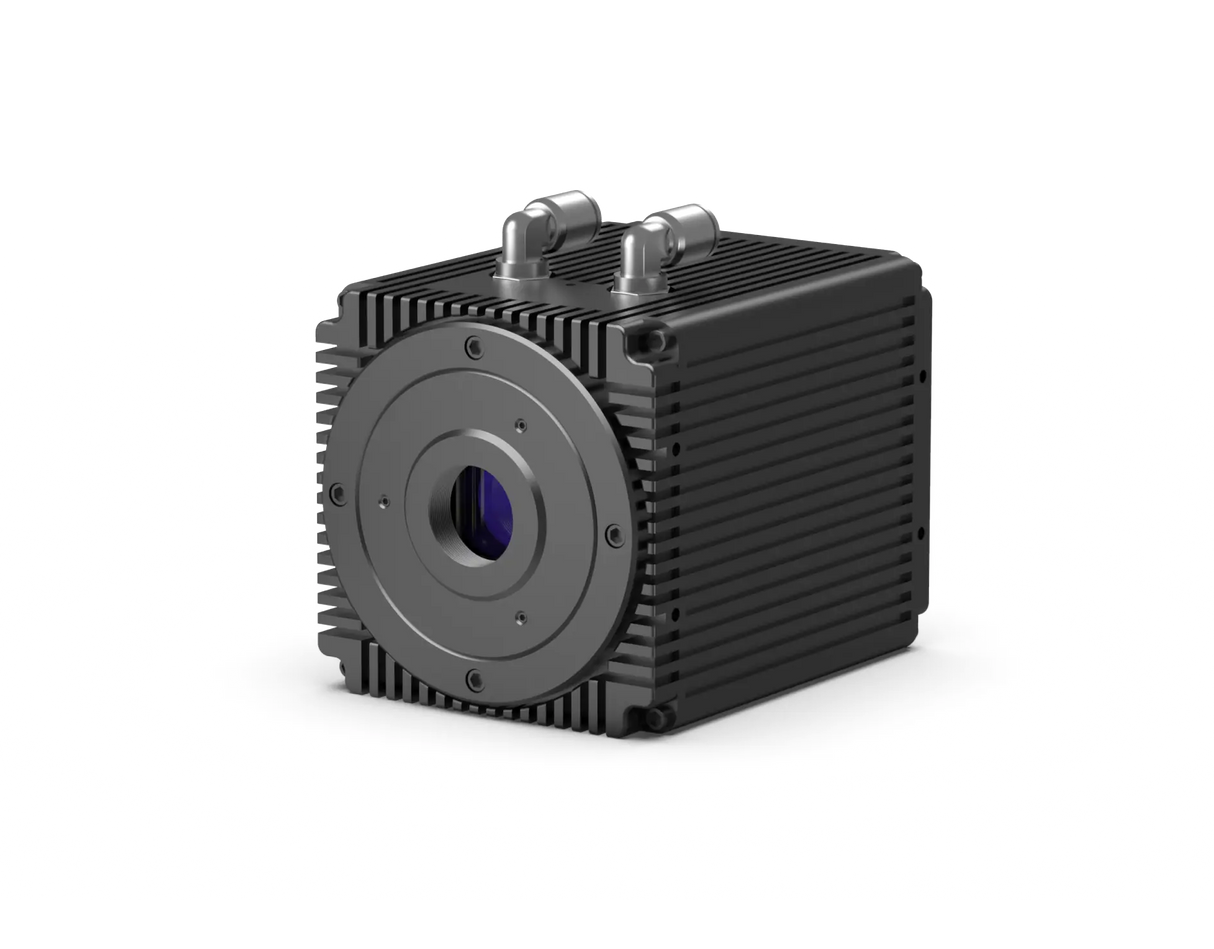

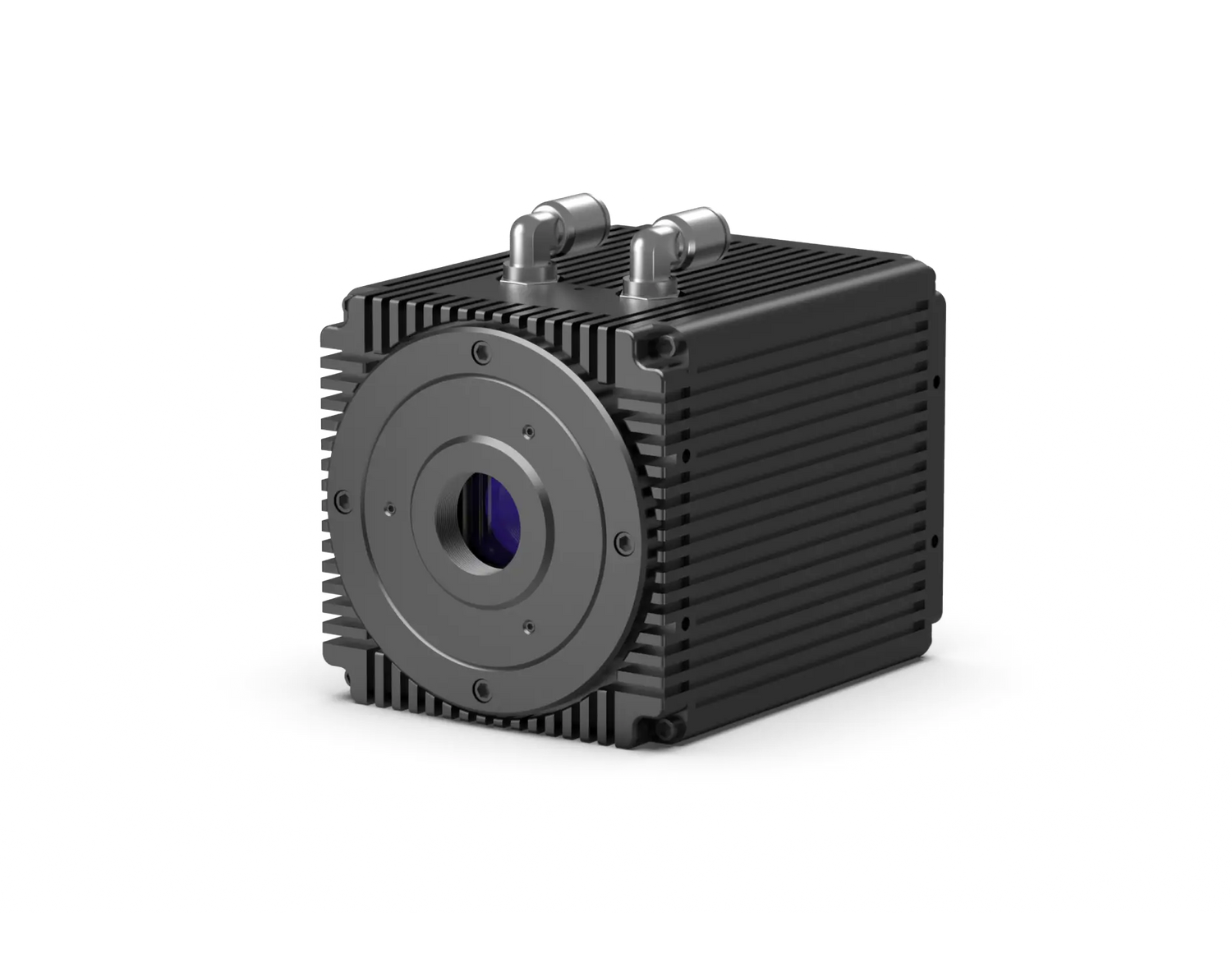

Dhyana 95 V2 sCMOS Camera

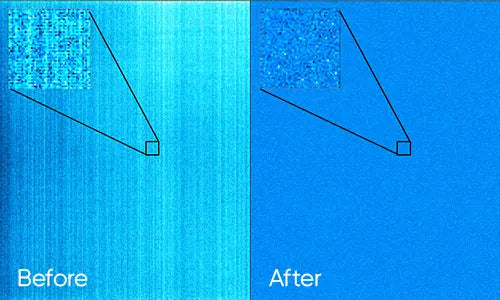

The Dhyana 95 V2 is designed to deliver ultimate sensitivity achieving similar results to EMCCD cameras while outperforming its contemporaries in specifications and price. Following on from the Dhyana 95, the first back-illuminated sCMOS camera, the new model offers more functionality and improvements in background quality due to our exclusive Tucsen Calibration Technology.

• Sensor Type: BSI sCMOS
• Sensor Model: Gpixel GSENSE400BSI
• Peak QE: 95 % @ 560 nm
• Color/Mono: Mono

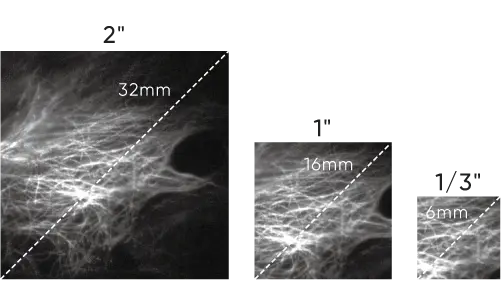

• Array Diagonal: 31.9 mm
• Effective Area: 22.5mm x 22.5mm
• Resolution: 2048 (H) x 2048 (V)
• Pixel Size: 11 μm x 11 μm
• Full-Well Capacity: Typ. : 80 ke- @ HDR, 100 ke- @ STD
• Dynamic Range: Typ. : 90 dB
• Frame Rate: 24 fps @ 16 bit HDR, 48 fps @ 12 bit STD
• Shutter Type: Rolling
• Readout Noise: 1.6 e- (Median) , 1.7 e- (RMS)
• Exposure Time: 21 μs ~ 10 s
• DSNU: 0.2 e-
• PRNU: 0.3 %
• Cooling Method: Air, Liquid
• Cooling Temperature: 45 ℃ below ambient (Liquid)
• Dark Current: 0.6 e-/pixel/s @-10℃
• Binning: 2 x 2, 4 x 4
• ROI: Support
• Timestamp Accuracy: 1 μs
• Trigger Mode: Hardware, Software
• Output Trigger Signals: Exposure, Global, Readout, High level, Low level, Trigger Ready
• Trigger Interface: SMA
• Data Interface: USB 3.0, CameraLink
• Data Bit Depth: 12 bit, 16 bit
• Optical Interface: C-mount / F-mount
• Power Supply: 12 V / 8 A
• Power Consumption: 60 W
• Dimensions: C-mount: 100 mm x 118 mm x 127 mm
  F-mount: 100 mm x 118 mm x 157 mm
• Weight: 1613 g
• Software: Mosaic, SamplePro, LabVIEW, MATLAB, Micro-Manager 2.0
• SDK: C, C++, C#, Python
• Operating System: Windows, Linux
• Operating Environment: Working: Temperature 0~40 °C, Humidity 0~85%
  Storage: Temperature 0~60 °C, Humidity 0~90%
