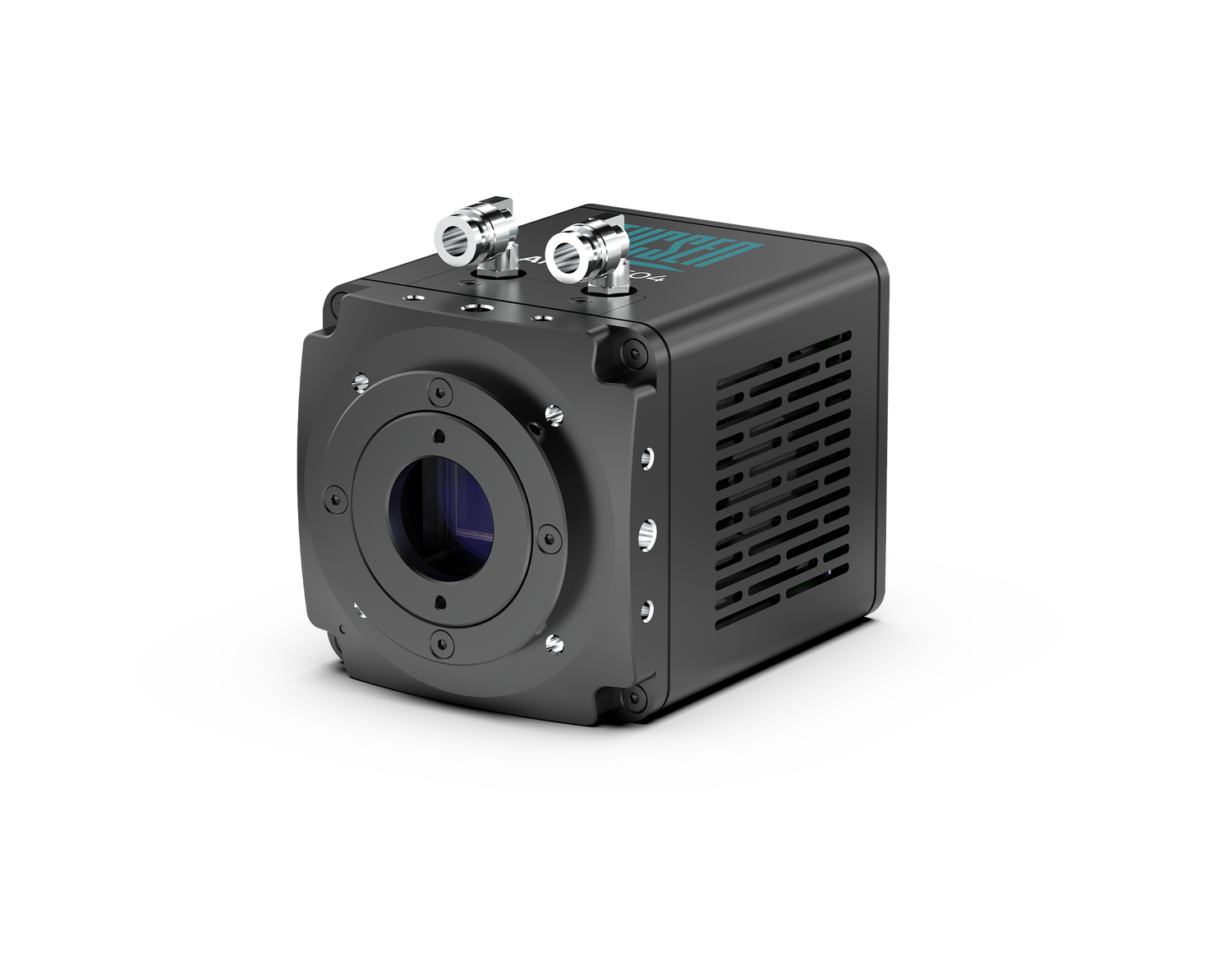

Aries 6504 sCMOS Camera

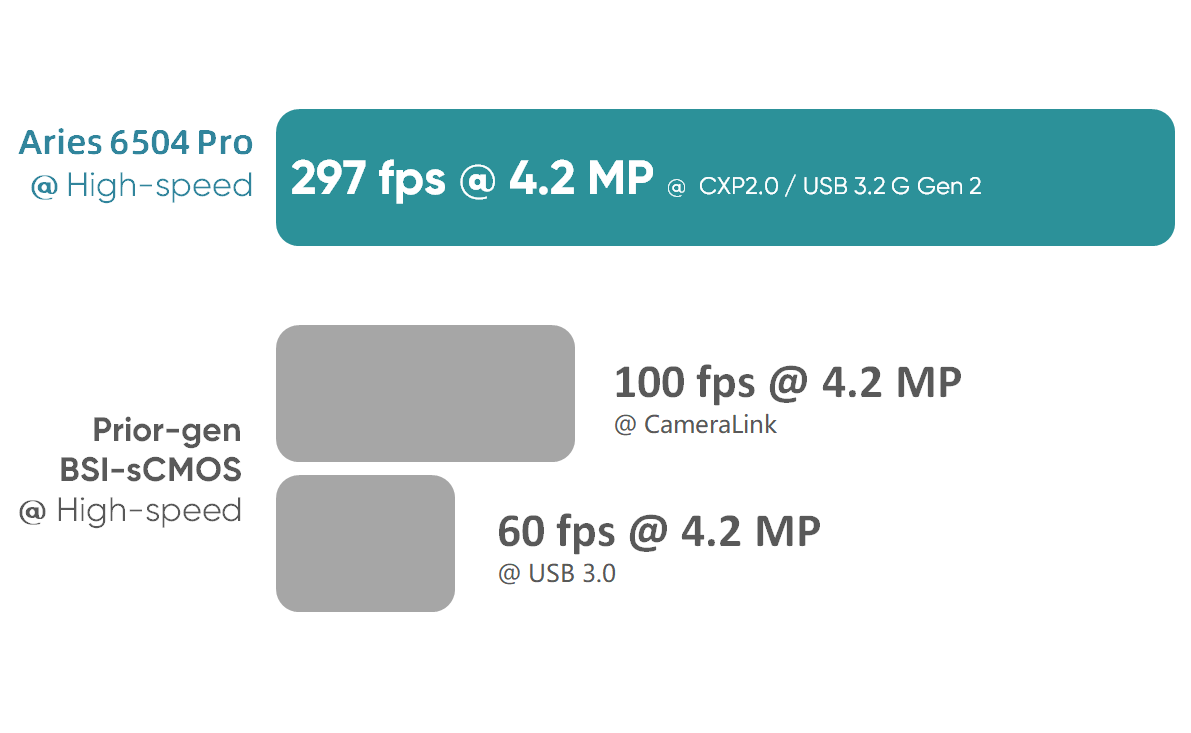

The Aries 6504 is built on a next-generation back-illuminated sCMOS platform, delivering substantial improvements in readout noise, frame rate, and dark current. In the Sensitive mode, it achieves 0.43 e⁻ (RMS) readout noise for single-photon-level signal discrimination, complemented by 297 fps at 4.2 MP in high-speed readout mode and a dark current of ≤0.01 e⁻/pixel/s @ −20 °C. Together, these capabilities extend the performance envelope of sCMOS cameras for demanding low-light and high-speed imaging applications.

Specification:

• Model: Aries 6504 Pro
• Sensor Type: BSI sCMOS
• Sensor Model: GSENSE6504BSI

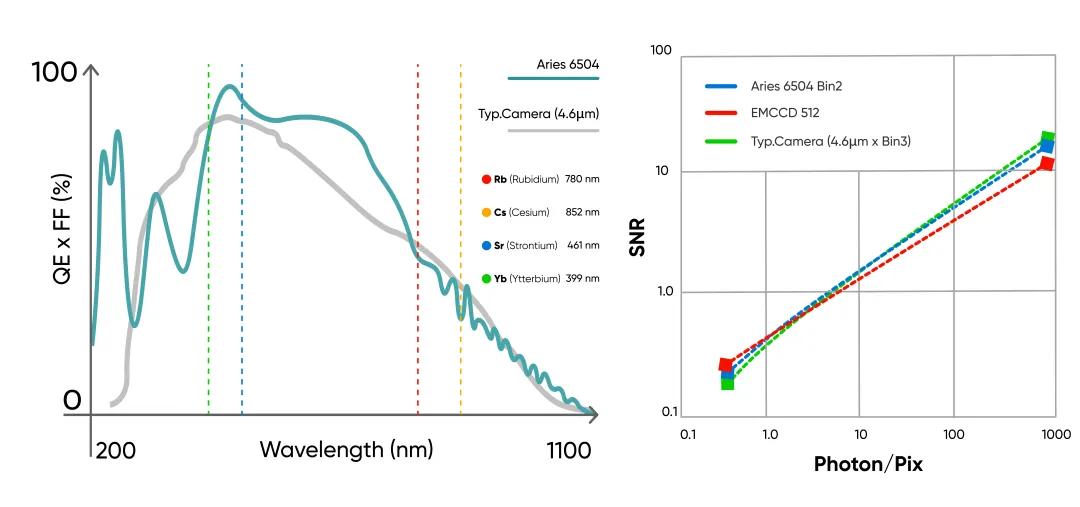

• Peak QE: 95 % @ 450 nm
• Color/Mono: Mono
• Array Diagonal : 18.8 mm
• Effective Area: 13.3 mm x 13.3 mm
• Resolution: 2048 (H) x 2048 (V)
• Pixel Size: 6.5 μm x 6.5 μm
• Full-Well Capacity: 15ke- @ HDR mode
• Dynamic Range: 91dB @ Sensitive mode
• Frame Rate: 99fps @ Sensitive mode, 170fps @ HDR mode, 297fps @ Speed mode

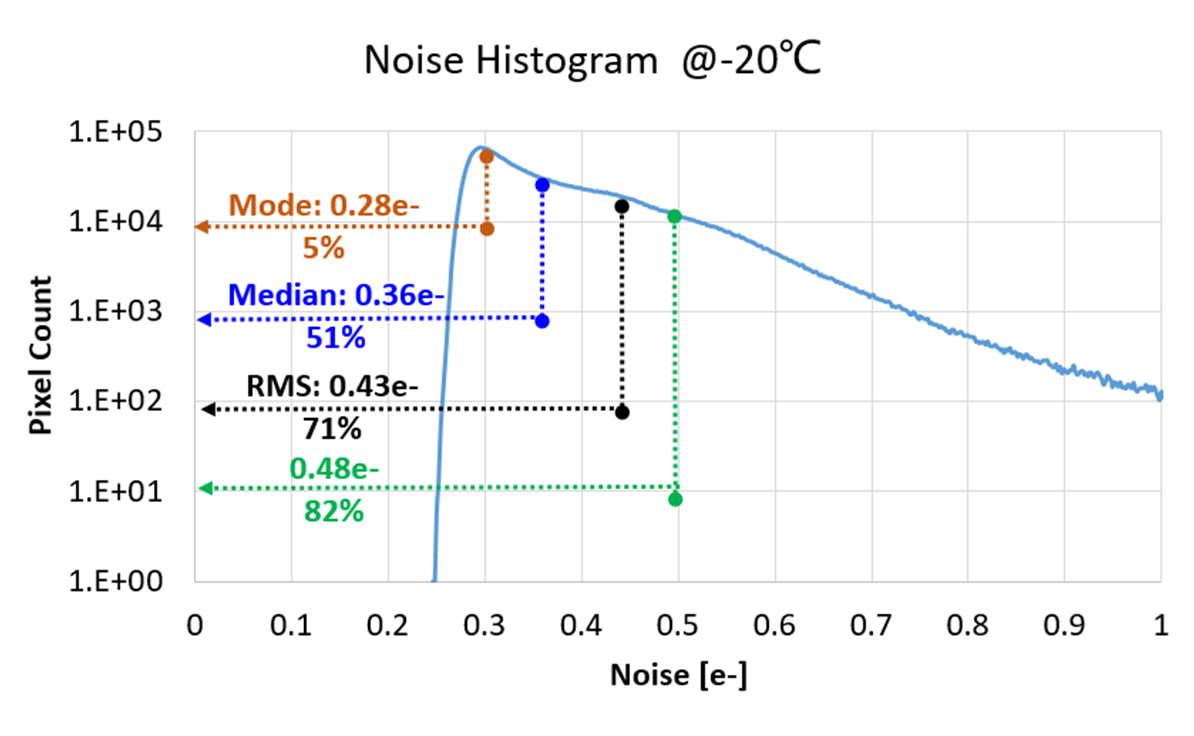

• Readout Noise: 0.43e-(RMS) @ Sensitive mode
• Shutter Type: Rolling, Global reset
• DSNU: 0.3 e-
• PRNU: 0.3 %
• Cooling Method: Air, Liquid
• Max. Cooling Temperature: Liquid：-20℃ @ Liquid temperature 20℃
  Air：-10℃ @ Ambient temperature 25℃

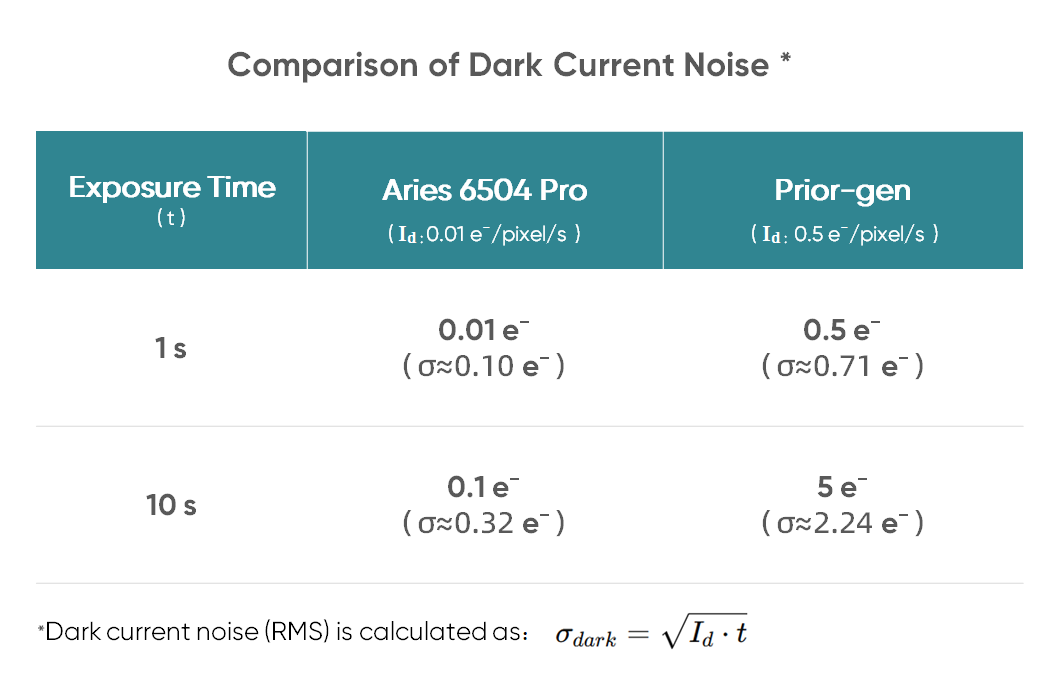

• Dark Current: 0.01 e-/pixel/s @-10℃
• Binning: 2 x 2, 4 x 4
• ROI: Support
• Trigger Mode: Hardware, Software
• Output Trigger Signals: Readout End,Global Exposure,Exposure Start, Trigger Ready, first row, any row,High,Low
• Trigger Interface: SMA x 4
• Data Interface: USB3.2 Gen2, CXP2.0 x 2
• Data Bit Depth: 12 bit, 16 bit
• Optical Interface: C-mount
• Power Supply: 12 V / 8 A
• Power Consumption: 60 W
• Dimensions: 80×80×108mm *
• Weight: 950 g
• Software: Mosaic, SamplePro
• SDK: C, C++
• Operating System: Windows, Linux
• Operating Environment: Windows 10/11、Ubuntu 22.04
• * Remark:The dimensions listed refer to the bare camera body only; water-cooling connectors, adapters, and interfaces are not included. For full details, see the mechanical drawing.
