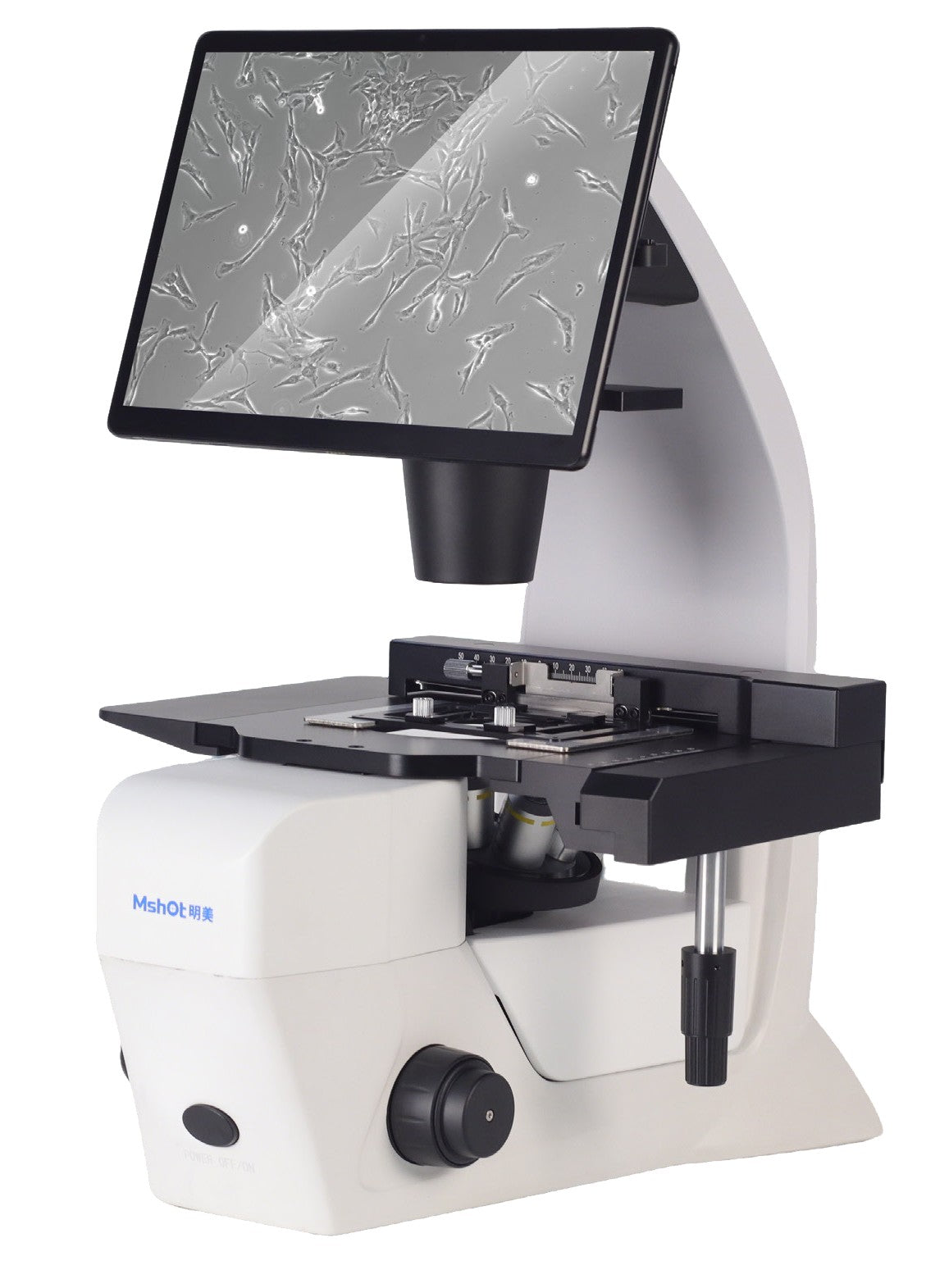

MIX60-FLD Intelligent Digital Microscope
MIX60-FLD Intelligent Digital Microscope is backordered and will ship as soon as it is back in stock.
Protect your product
Protect your product
Select from a range of extended warranty and service plan options, so you can enjoy your product stress-free. Contact us for more details.
Delivery and Shipping
Delivery and Shipping
We provide delivery solutions tailored to each order to ensure safe and timely arrival of your equipment. Please contact us for more available options
MIX60-FLD Intelligent Digital Microscope
MIX60-FLD Intelligent Digital Microscope is backordered and will ship as soon as it is back in stock.
Description
Description

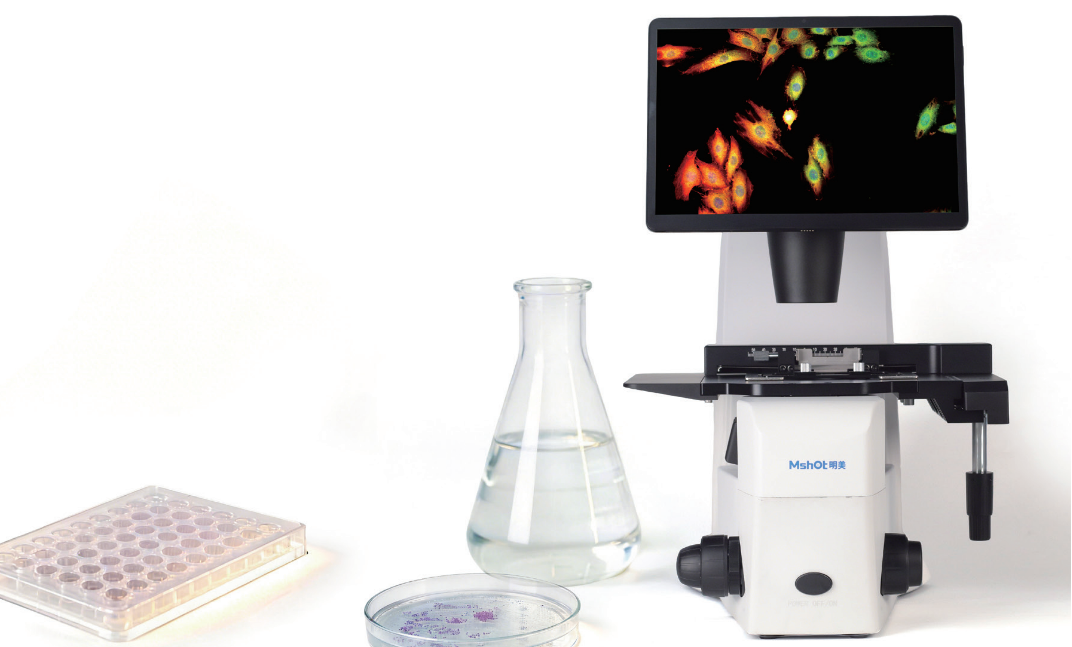

MIX60-FLD is an all-in-one intelligent inverted fluorescence microscope with an integrated tablet design. It features an infinite-correction optical system, motorized fluorescence turret, 5-color standard channels, and high-resolution CMOS imaging. Built-in software supports cell counting, confluence analysis, transfection efficiency, multi-channel fluorescence imaging, and long-term live-cell recording. It is compact, cable-free, ready to use upon power-on, and suitable for use in laminar flow hoods and biosafety cabinets, ideal for cell culture, stem cell research, drug screening, and cell & gene therapy applications.
Integrated All-In-One Tablet Design:

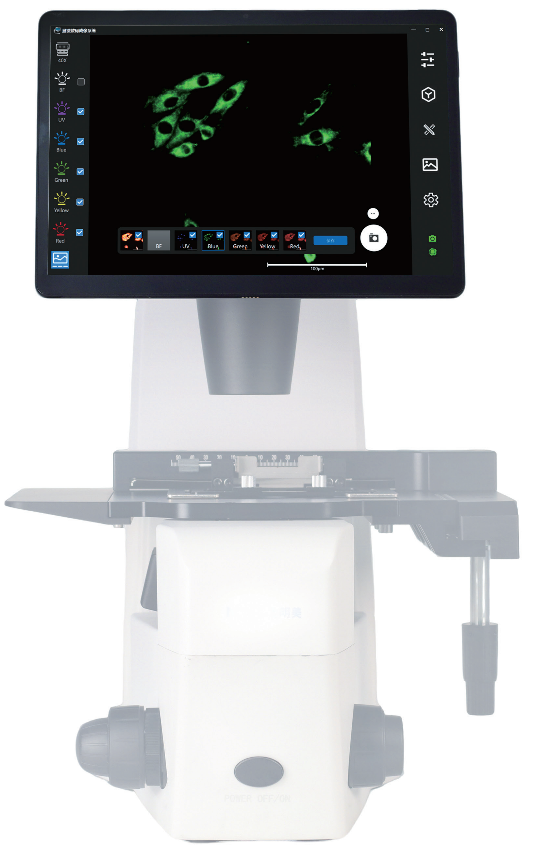

Rich Software Functions & User-friendly Interface：
- Intelligent Multi-channel Photography & Auto Channel Switching
- Image Parameter Adjustment
- Motorized Objective Switching

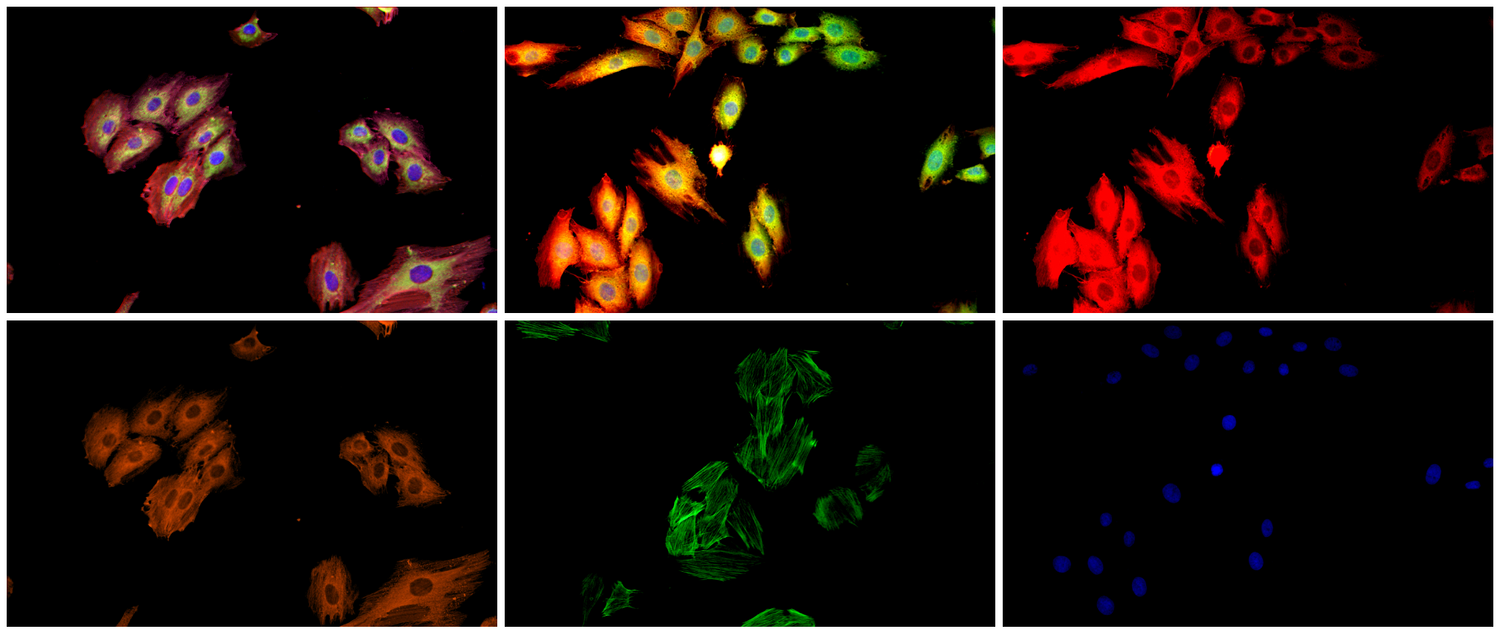

- Multi-channel Overlay & Preview
Intelligent workstation for convenient experimental analysis：
- Cell Culture Monitoring
- Cell Counting, Transfection & Expression Analysis, Confluence Analysis
| Main Unit | Infinite-correction optical system |
| Stage | Fixed stage |
| Stage extension board | |
| XY-axis stage movable ruler | |
| Universal sample holder for various containers; Round transparent drip plate: φ118 mm | |
| Condenser | Removable condenser, N.A.: 0.3; WD: 72 mm |
| Suitable for objectives: 4×, 10×, 20×, 40×, 60× | |
| Phase Ring Plate | One 10× phase ring; one shared phase ring for 20×/40× |
| Bright-field Illumination | 3 W full-spectrum white LED, continuously adjustable brightness |
| Detachable filter mount for 34 mm filters | |
| Aperture diaphragm with manual open/close | |
| Nosepiece | 5-position motorized coded nosepiece, software-controlled switching |
| Objectives | Standard: FL 4×; FL Ph 10×; FL Ph 20×; FL Ph 40×; other magnifications & types optional |
| Fluorescence Illumination | Motorized 6-position fluorescence turntable; |
| Focusing Mechanism |
Coaxial coarse/fine focusing with limit & lock; low-position coaxial knobs; fine focus division: 2 μm |
| Imaging System | 1/1.6-inch color CMOS |
| 12.5 MP, 2.0 μm×2.0 μm | |
| Frame rate: 28 fps |
