Description
Description

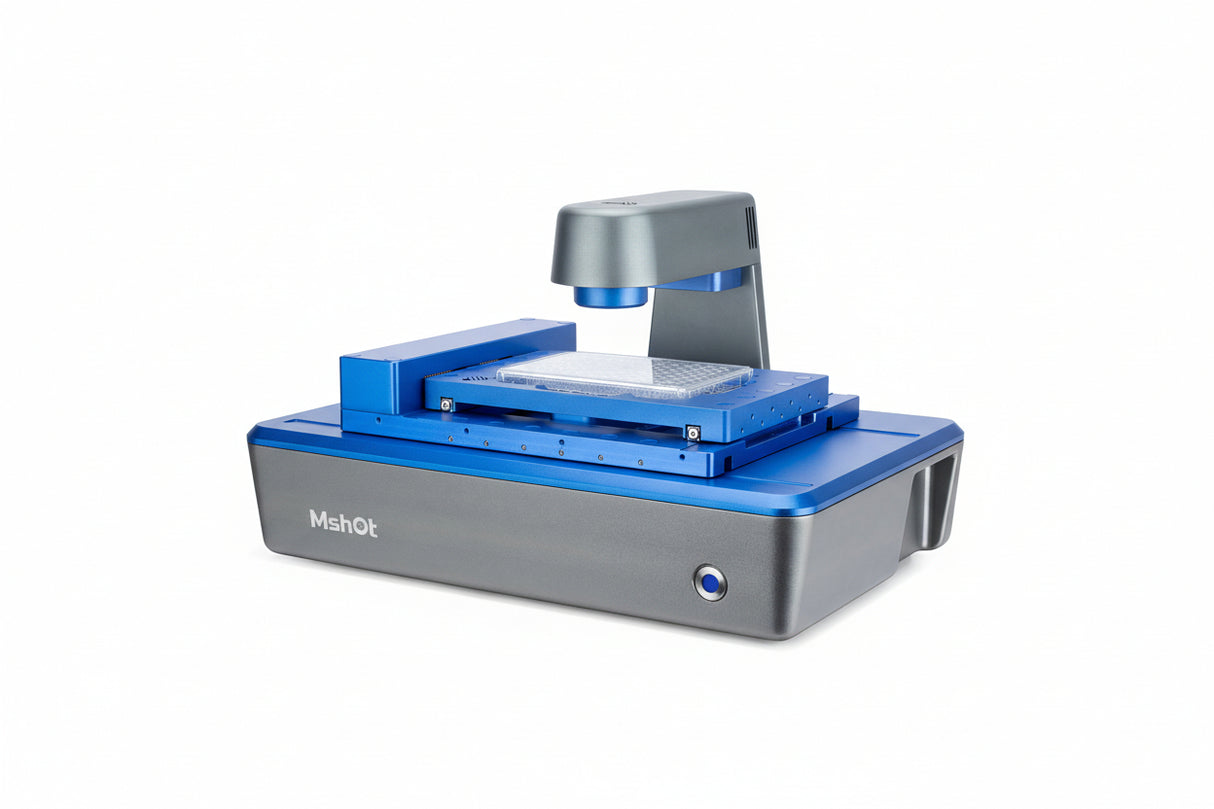

MCS31 is an excellent companion for cell culture research. It can be used inside the incubator and supports bright field, phase contrast and fluorescence observation of slides and various culture flasks, petri dishes, as well as 6-well to 384-well microplates. It enables scanning and stitching of selected regions, allowing for large-field-of-view, long-term observation and recording of multi-well plates. This significantly improves experimental efficiency in application scenarios such as comparative experiments and reduces the risk of experimental failure caused by contamination and other factors. The optional "Organoid Module" also provides a unique screening tool for capturing the complex, 3D spatial organization, cellular dynamics, and functional properties of miniature tissues.
| Specifications: | |
| Transmitted Observation | Transmitted bright field / phase contrast illumination, working distance 55mm |
| 50,000 – hour long lifespan, 625nm low – phototoxicity LED light source | |
| 3 Channel Fluorescence Observation (Wavelengths Customizable) |
Green (G) + Red (R) + Blue (B) |
| Near Infrared (NIR) or Orange (O) | |
| Objective Lenses | Select any two from 4×/10×/20× objective lenses; Motorized objective lens switching |
| XY Stage | Motorized XY moving platform with a stroke of 115*77mm; Repeat positioning accuracy ≤ 3μm |
| Z Axis | Motorized with auto-focus mechanism |
| Vessel Types |
Slide, Chamber slide, Wellplate: 6, 12, 24, 48, 96, 384, Flask, Petri Dish |
| Camera |
High speed and high sensitivity camera, 5M 2/3 inch, 40fps |
| Software |
Support remote control, including light control, camera control, single image and time lapse acquisition option: 3D organoid module |
| Analysis Function | Cell counting, cell confluency, scratch assay, transfection efficiency, viability analysis |
| Scanning Function | - Multi well imaging and multi position imaging with bright field, phase contrast & multi-channel fluorescence overlay |
| - Multi area scanning, imaging and stitching with bright field, phase contrast & multi-channel fluorescence overlay | |
|
Data Transmission and Power Supply |
USB data cable + DC power cable |
| Working Environment | 5 – 40°C, 20 – 95% RH |
| Dimensions | 252mm × 377mm × 208mm |
