Description
Description

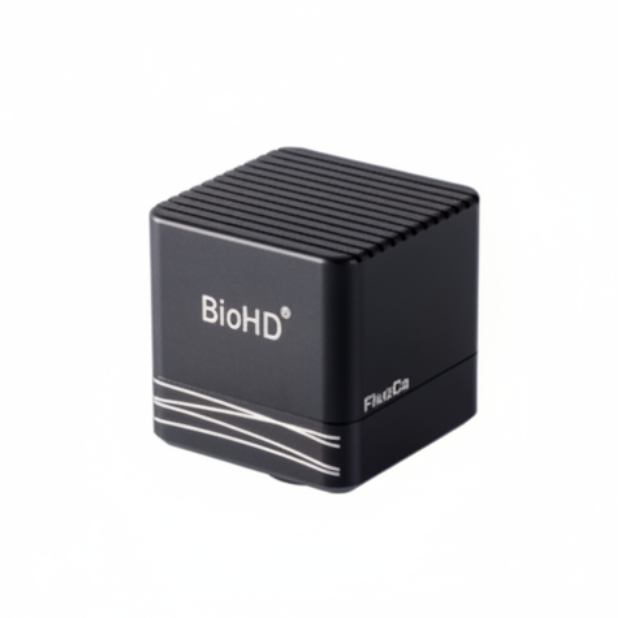

The BioHD-CS12 camera is a high-sensitivity color CMOS camera designed to deliver superior high-resolution imaging for demanding life science applications. Equipped with a 12 MP Sony IMX676 sensor, it captures sharp, high-detail images at a resolution of 3536 × 3536 pixels. This square sensor format, paired with a 2.0µm x 2.0µm pixel size, provides an optimal balance between resolution and light sensitivity, making it ideal for fluorescence microscopy.
For applications requiring an expanded field of view, the 1/1.6" sensor can be paired with a 0.5 x C-mount adapter to capture larger sample areas in a single frame, significantly reducing the need for image stitching.
The camera offers a flexible IR filter configuration to suit various research needs. It comes standard with an IR-cut filter for accurate color fidelity, which can be replaced with an optional AR-coated glass window for enhanced sensitivity in the near-infrared (NIR) region.
Main specifications:
| Resolution | 3536 x 3536 (12 Megapixels) |
| Pixel Size | 2.0um x 2.0um |
| Sensor Size | Equivalent 1/1.6 Inch |
| Frame Rate | 27fps @3536x3536, 60fps @1768x1768 |
| Bit Depth | 8-bit/12-bit |

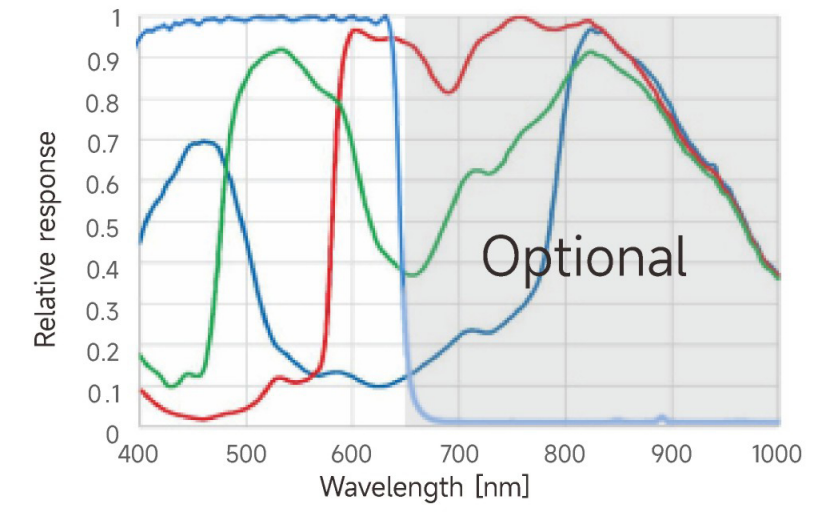

| Spectral Response | 400nm-1000nm |
| IR Filter | IR-cut filter (default) Optional AR glass window for enhanced near-IR sensitivity |
| Power/Data | USB3.0 |
| Cooling | Natural passive cooling via metal surface |
