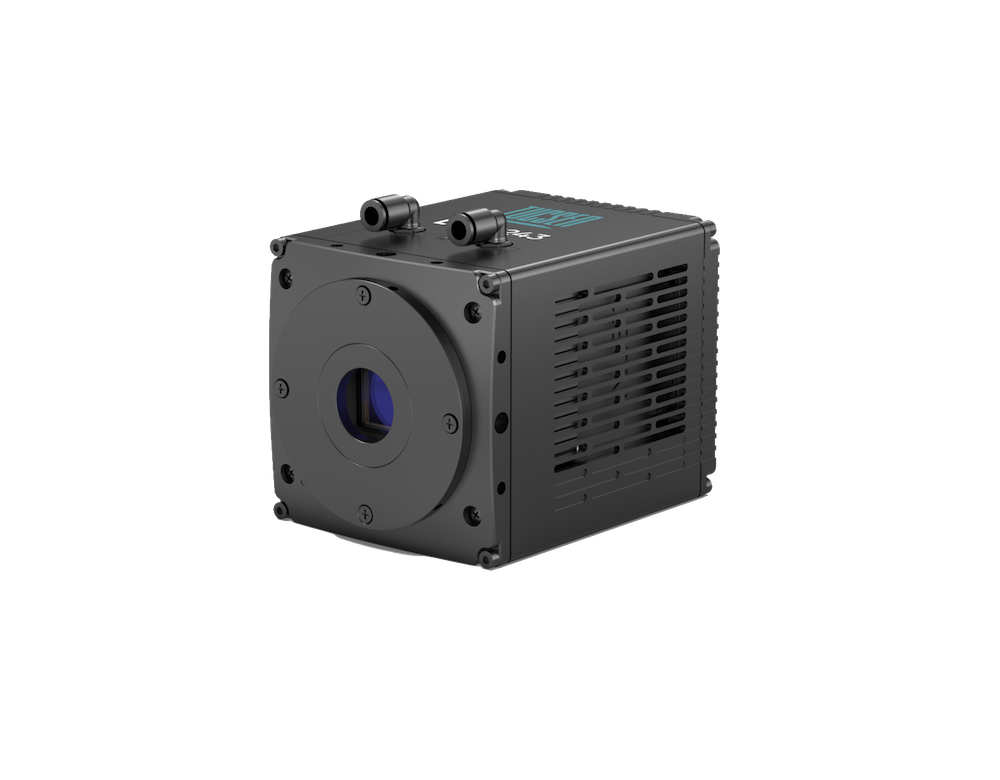

Leo 3243 Pro sCMOS Camera
Leo 3243 Pro sCMOS Camera is backordered and will ship as soon as it is back in stock.
Protect your product
Protect your product
Select from a range of extended warranty and service plan options, so you can enjoy your product stress-free. Contact us for more details.
Delivery and Shipping
Delivery and Shipping
We provide delivery solutions tailored to each order to ensure safe and timely arrival of your equipment. Please contact us for more available options
Leo 3243 Pro sCMOS Camera
Description
Description

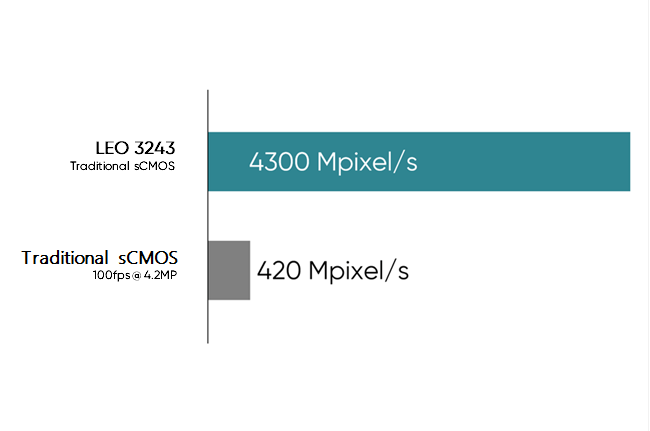

The LEO 3243 Pro is Tucsen’s cutting-edge solution for low-light and high-throughput imaging. Powered by the latest stacked BSI sCMOS technology, it delivers exceptional performance with 43 MP HDR imaging at 100 fps, enabled by its high-speed 100G COF interface. Featuring 3.2 μm pixels and 24ke⁻ full-well capacity, the LEO 3243 redefines the balance between pixel size and full-well capacity, making it the ideal choice for today’s sophisticated scientific imaging systems.
- Sensor Model: GSENSE 3243BSI
- Sensor Type: Stacked BSI sCMOS
- Shutter Type: Rolling Shutter
- Pixel Size: 3.2 μm ×3.2 μm
- Peak QE: 80 %
- Chrome: Mono

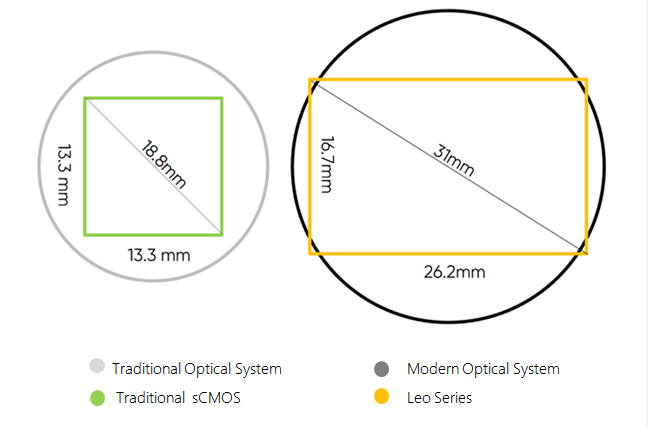

- Array Diagonal: 31 mm
- Effective Area: 26.2 mm x 16.7 mm
- Resolution: 8192 x 5232
- Full Well Capacity: 21 ke- @ Standard Low Gain ; 7.2 ke- @ Standard High Gain; 19 ke- @ HDR ; 19 ke- @ Compressed HDR
- Dynamic Range: 75 dB
- Frame Rate: 100 fps@Standard mode; 50 fps@HDR; 100 fps@Compressed HDR
- Read Out Noise: 5.7 e- @ Standard Low Gain; 2.0 e- @ Standard High Gain; 2.7 e- @ HDR ; 2.6 e- @ Compressed HDR
- Dark Current: < 0.5 e-/pixel/s@0°C (Air Cooling)
- Cooling Method: Air / Liquid
- Cooling Temperature: Air: 5°C, Liquid:-5°C
- Trigger Output: Exposure Start, Exposure End, Readout, Trigger Ready, First Row, Any Row
- Trigger Interface: Hirose-12-pin

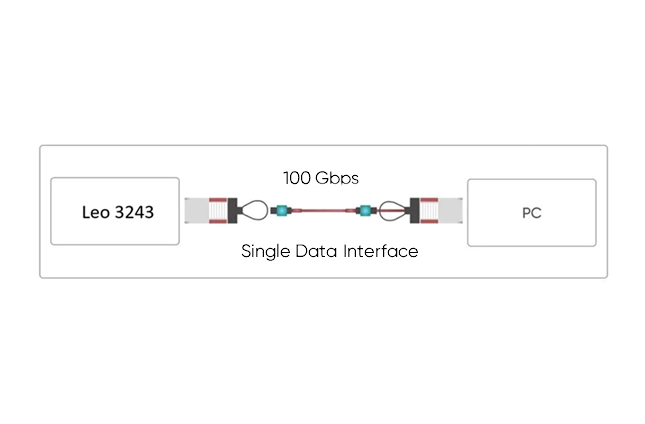

- Data Interface: 100G QFSP28
- Data Bit Depth: 14 bit, 16 bit
- Optical Interface: T/F/C Mount
- Dimensions: < 90*90*120 mm
- Weight: <1kg
