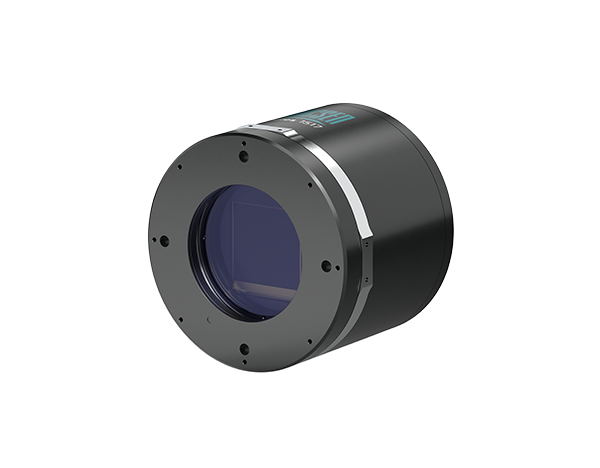

Aries 1517 Vacuum Cooled Large Format sCMOS Camera

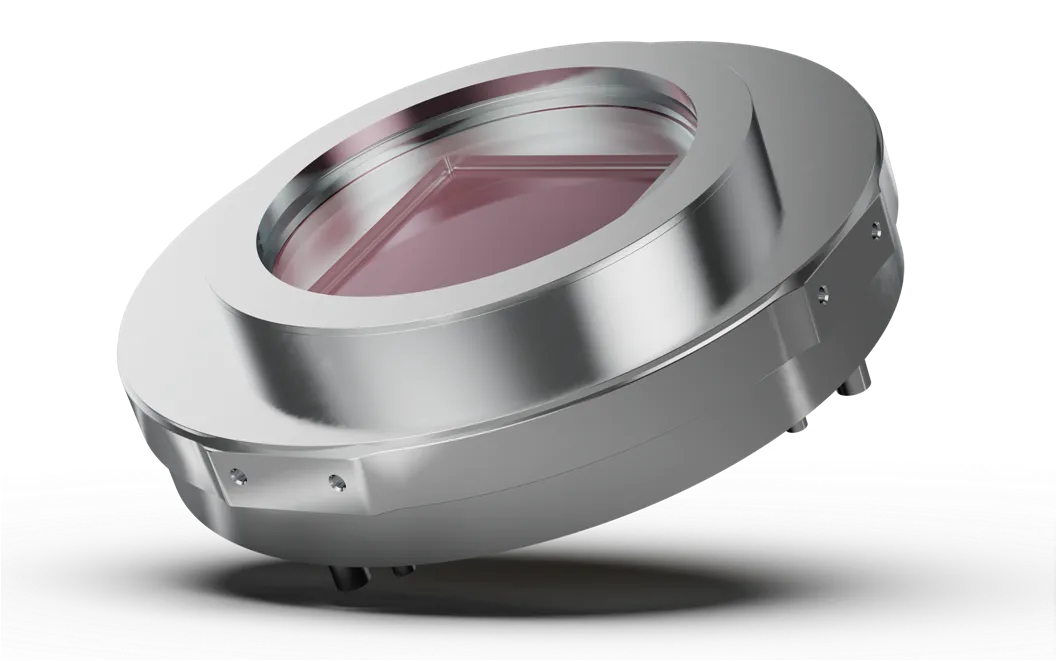

The Aries 1517 is a new‑generation large BSI sCMOS astronomical camera developed by Tucsen using vacuum cooling technology. Compared with conventional CCD cameras, it offers a more compact, lightweight design and lower power consumption to meet key astronomical imaging requirements, including wide field of view, high dynamic range, and long‑exposure, while greatly simplifying system integration.

Specification:

• Model: Aries 1517
• Sensor Type: BSI sCMOS
• Sensor Model: Gpixel GSENSE1517BSI
• Peak QE: 92%
• Color / Mono: Mono
• Array Diagonal: 87 mm
• Effective Area: 61.74 mm x 61.5 mm
• Resolution: 4116 (H) x 4100 (V)
• Pixel Size: 15μm x 15 μm
• Full-Well Capacity: 67 Ke-@High Dynamic; 81.4 Ke-@Standard Low Gain; 16 Ke-@Standard High Gain
• Dynamic Range: 94.7 dB@High Dynamic;
• Frame Rate: 4 fps
• Shutter Type: Rolling
• Readout Noise: 1.2 e-@High Dynamic
• Exposure Time: 61.35μs~ 3600s
• DSNU: 0.3 e-
• PRNU: 0.3%
• Cooling Method: Air, Liquid
• Cooling Temperature: Air: -40°C@Ambient 10°C; Liquid: -50°C@Liquid 10°C
• Dark Current: 0.023 e-/p/s @-40°C
• ROI: Support
• Timestamp: Support
• GPS: Support
• Trigger Mode: Hardware, Software, Grabber
• Output Trigger Signals: Readout End, Global Exposure, Exposure Start, Trigger Ready, High, Low, Any Row, First Row
• Trigger Interface: SMA

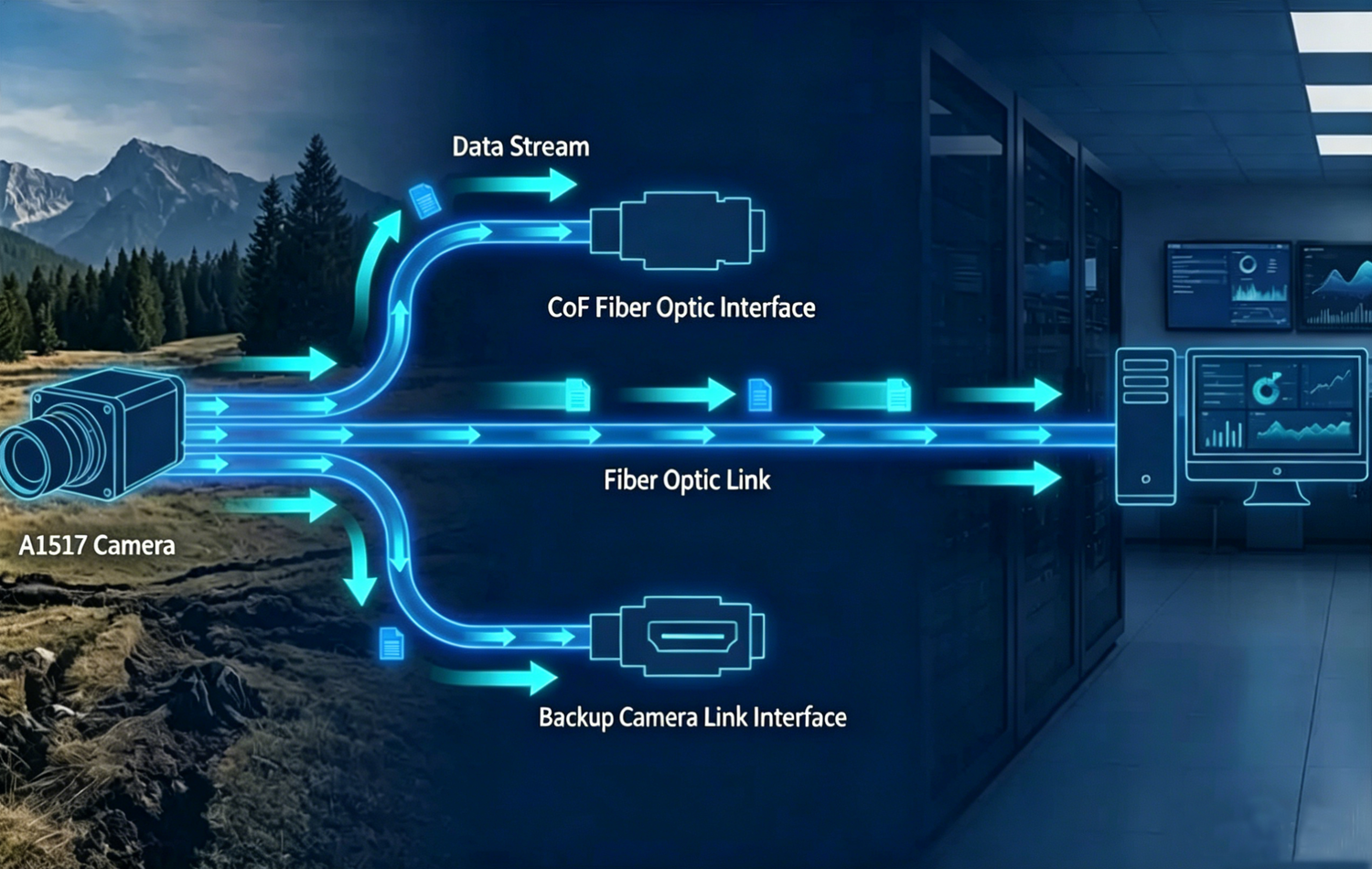

• Data Interface: COF, CameraLink
• Data Bit Depth: 14 bit, 16 bit
• Optical Interface: User customisation
• Power Supply: DC 24 V
• Power Consumption: < 100 W
• Dimensions: φ 185 mm x 169.1 mm
• Weight: 9 kg
• Software: SamplePro
• SDK: C, C++
• Operating System: Windows 7 / 10, Ubuntu 18.04
• Operating Environment: Working: Temp. -40°C~50°C, Hum. 0%~85%, Altitude： 0 m~6000 m; Storage: Temp. -40°C~60°C, Hum. 0%~95%
