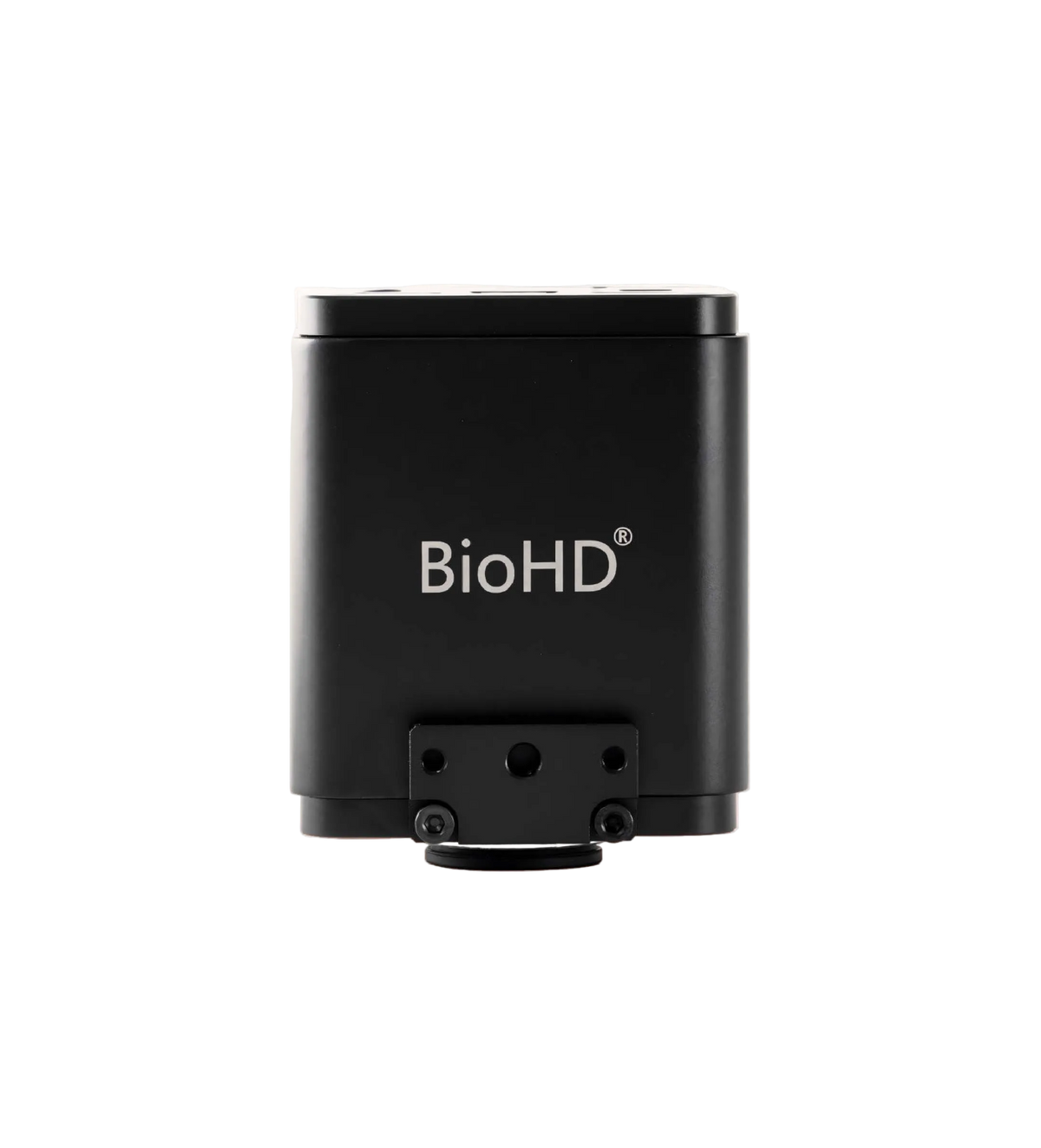

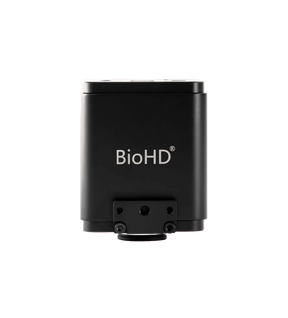

BioHD-M8U Fast 4K Colour Multi-Port Camera
BioHD-M8U Fast 4K Colour Multi-Port Camera is backordered and will ship as soon as it is back in stock.
Description
Description
The BioHD-M8U is an all-in-one, standalone multi-interface HDMI camera that operates completely independently — no PC required. Simply connect it directly to an HDMI display for instant high-resolution image and video acquisition on stereo and biological microscopes, with HDMI, Network, USB3.0, and Wi-Fi output all built in. Images and videos can also be saved to an SD card or USB flash drive, enabling convenient on-site analysis and further research. At its core is the Sony IMX678(C) sensor: its back-side-illuminated, deep-trench-isolated pixel architecture delivers high sensitivity and SNR for dim samples, plus a wide dynamic range that holds onto both faint and bright detail in the same frame without clipping — giving clean, high-definition real-time display straight out of the box.
Main specifications:
| Sensor | Sony IMX678, STARVIS 2 colour CMOS, back-side-illuminate (BSI) pixel architecture |
| Resolution | 3840 x 2160 (4K) |
| Pixel Size | 2.0um x 2.0um |
| Sensor Size | Equivalent 1/1.8 Inch |
| Frame Rate |
60fps @4K, HDMI2.0 30fps @3840x2160, USB3.0 |
| Storage | SD card and USB drive |
| Interface | HDMI, USB3.0, WiFi, LAN |
