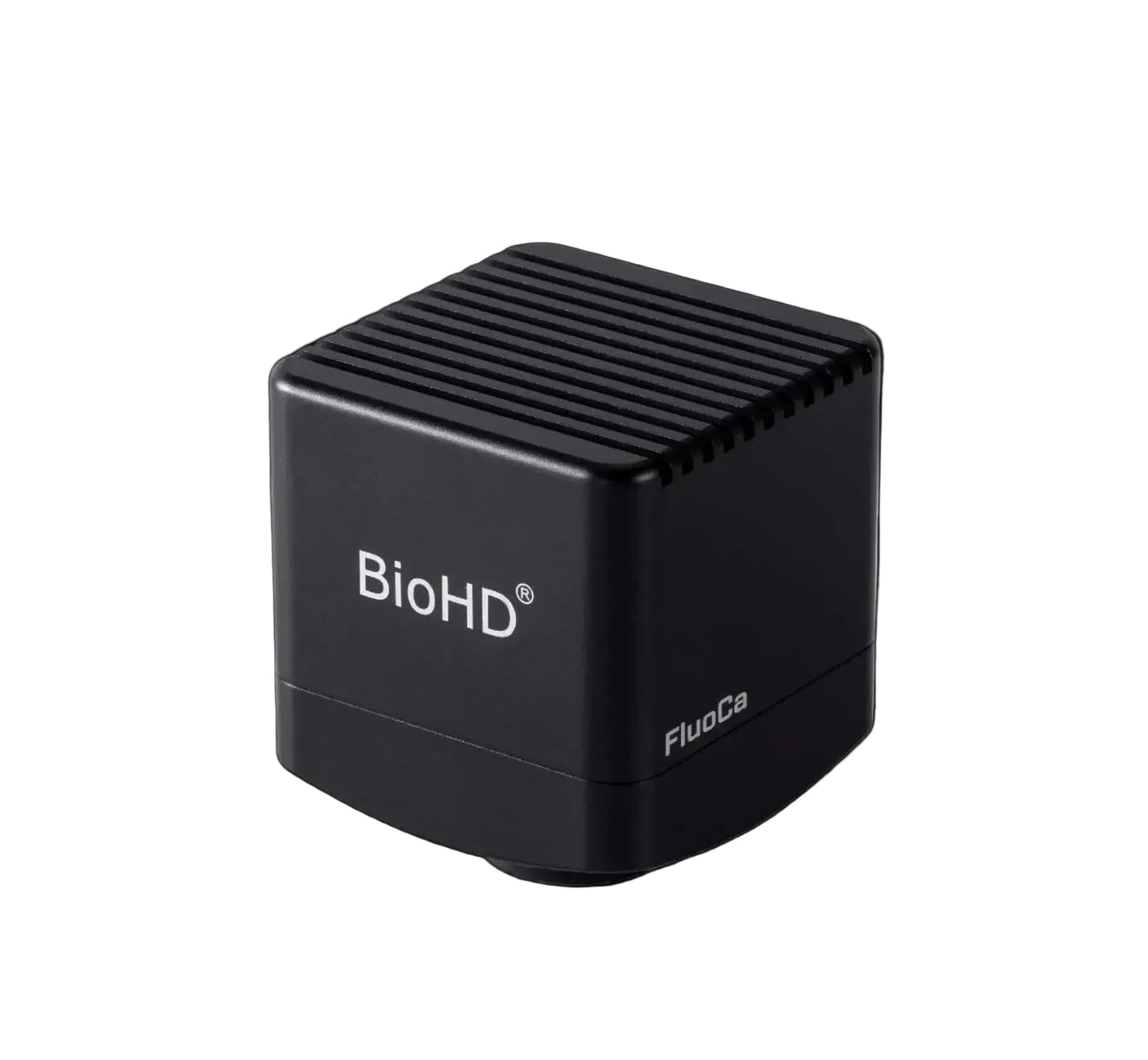

BioHD-VS12 High Resolution Mono CMOS Camera
BioHD-VS12 High Resolution Mono CMOS Camera is backordered and will ship as soon as it is back in stock.
Description
Description
The BioHD-VS12 delivers 12.3-megapixel monochrome imaging with distortion-free capture, low read noise, and high dynamic range - engineered for fluorescence microscopy, live-cell imaging, and quantitative research applications where every photon counts. It pairs a proven, high-sensitivity global-shutter sensor with a research-grade feature set in a compact, fan-less design built for demanding lab environments.
Main specifications:
| Resolution | 4096 x 3000 (12.3 Megapixels) |
| Pixel Size | 3.45um x 3.45um |
| Sensor Size | 1.1 Inch (17.52 mm diagonal) |
| Frame Rate | 23fps @4096x3000, 46fps @2048x1500 |
| Bit Depth | 12-bit |
| Spectral Response | 400nm-1000nm |
| Power/Data | USB 3.0 |
| Cooling | Natural convection (passive cooling via metal surface) |
