Description
Description

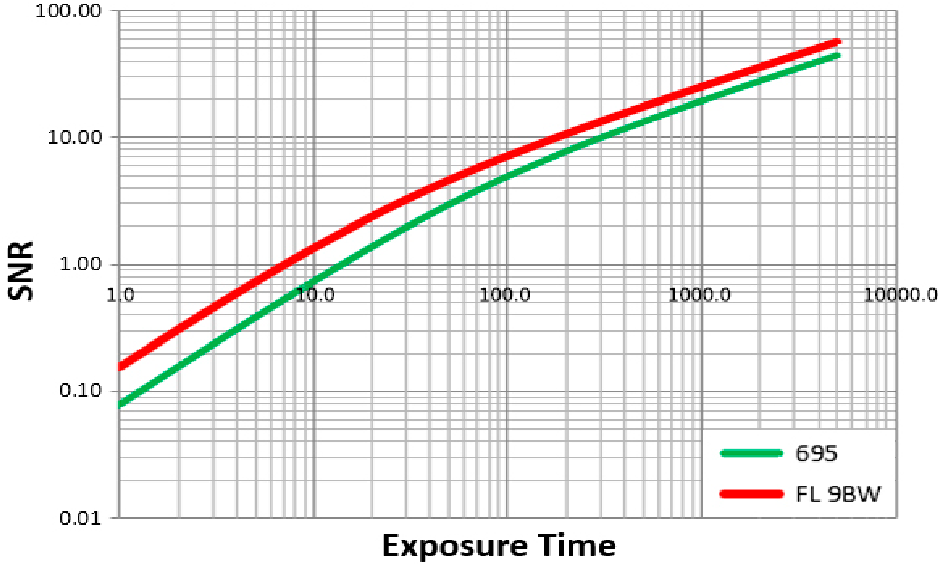

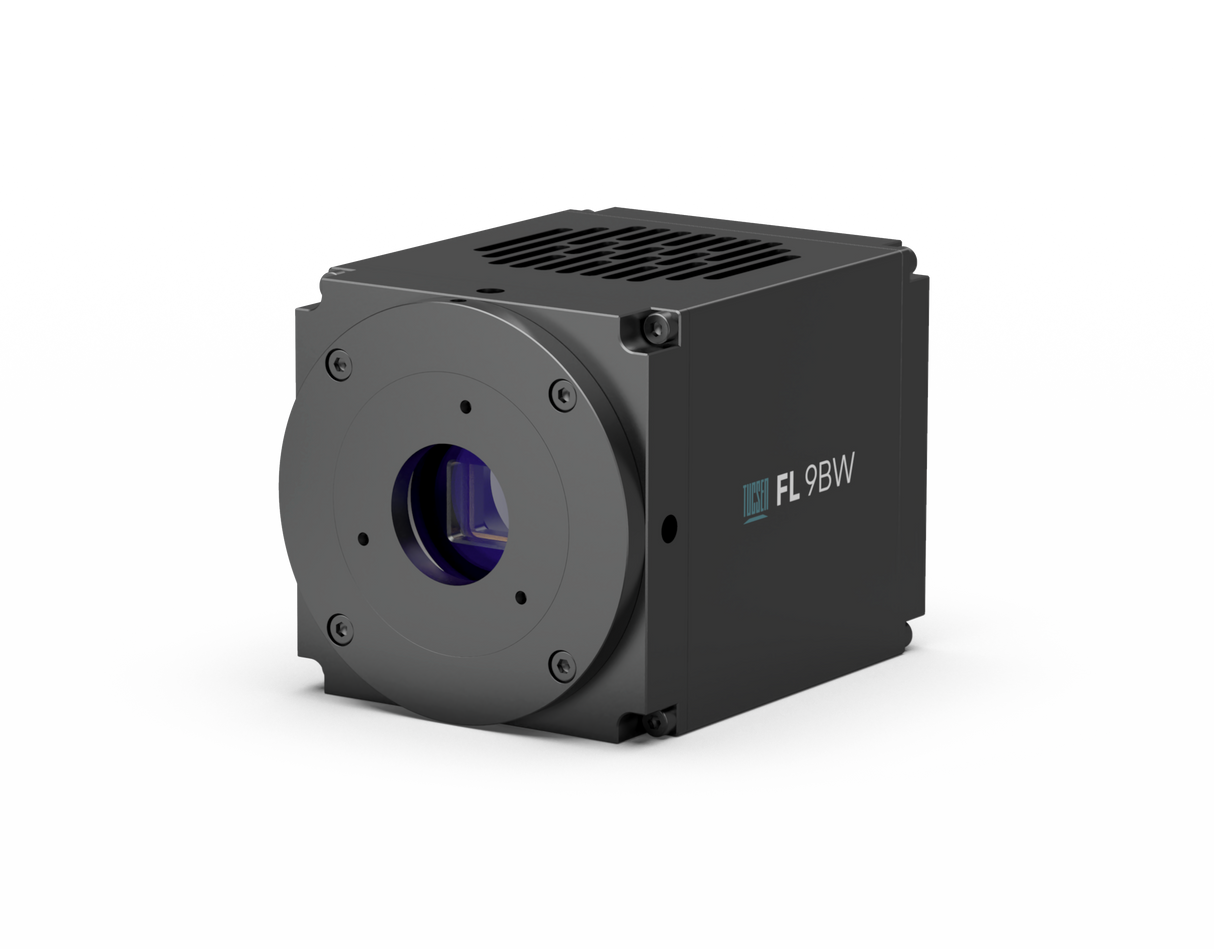

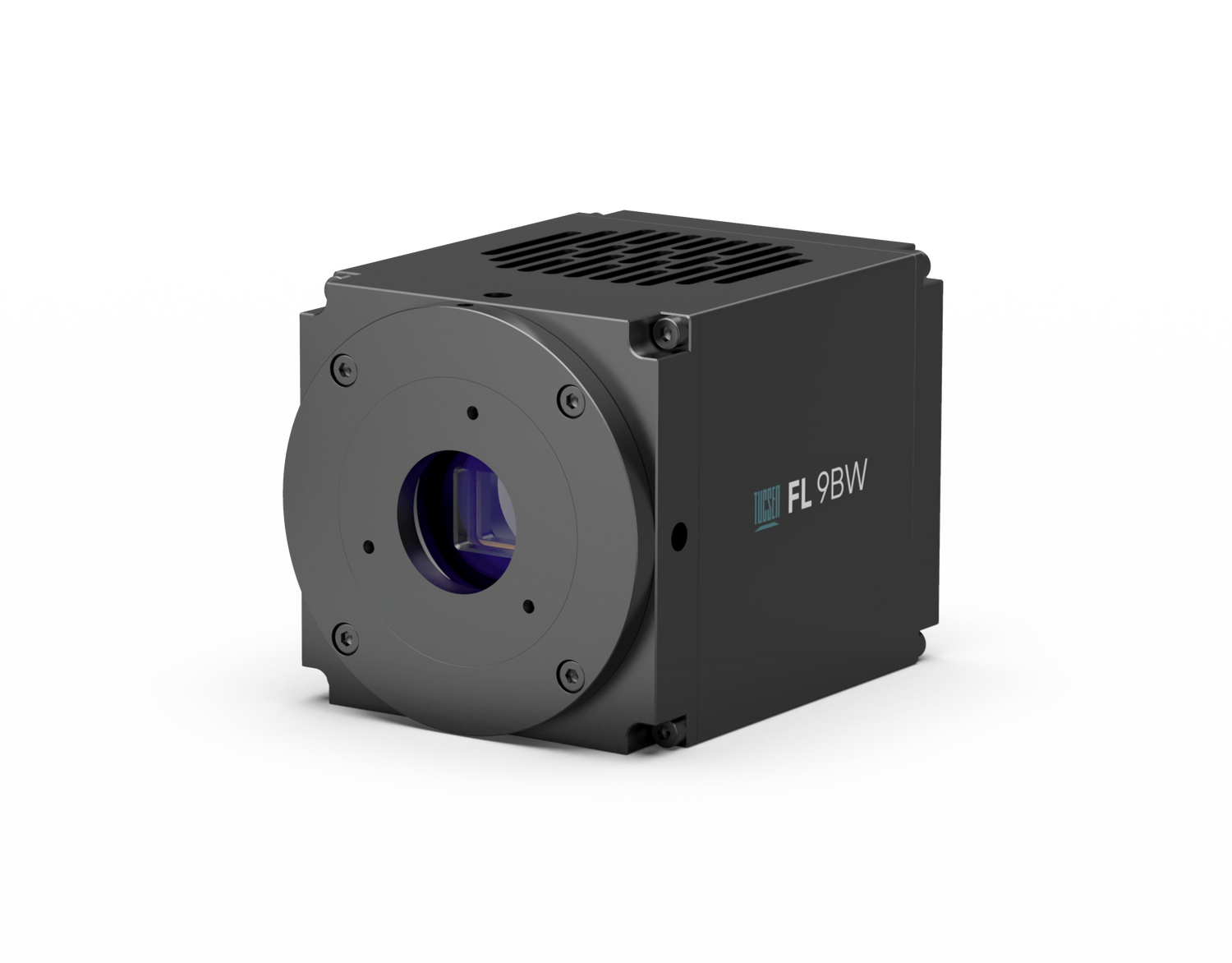

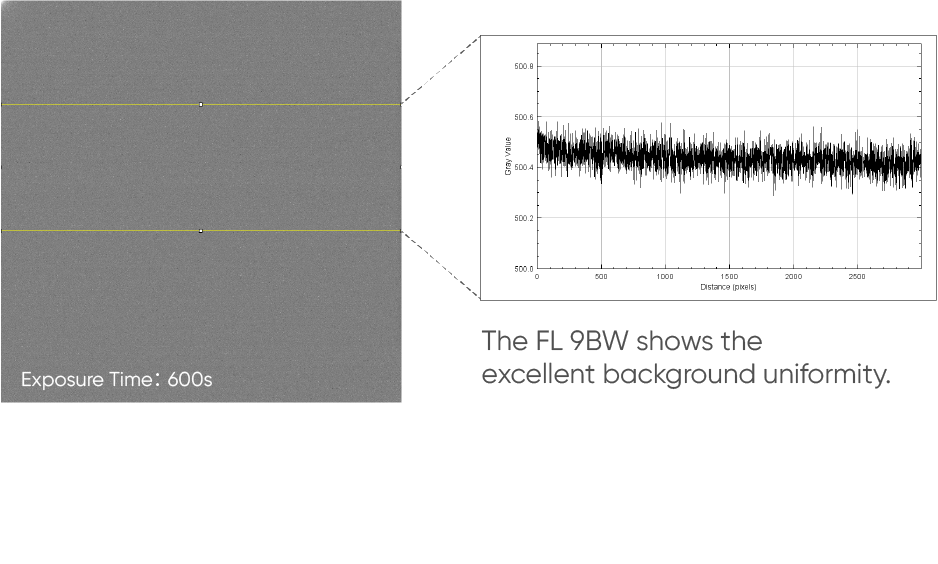

The FL 9BW is a cooled CMOS camera designed for long exposure imaging. It not only incorporates high sensitivity and low noise advantages from latest sensor technologies, but also leverages Tucsen’s many years experiences on cooling chamber design and advanced image processing, being able to capture clean and even images for up to 60 minutes exposure time.
Specification:
- Sensor Type: BSI CMOS
- Sensor Model: SONY IMX533CLK-D
- Color/Mono: Mono
- Array Diagonal: 15.96 mm (1”)
- Effective area: 11.28 mm × 11.28 mm
- Pixel Size: 3.76 µm × 3.76 µm
- Resolution: 3000 × 3000, 9 MP
- Peak QE: 92 % @ 540 nm
- Dark Current: < 0.0005 e-/p/s
- Gain Mode: Gain 0 - HFWC, Gain 1 - Balance, Gain 2 - High Sensitivity 1, Gain 3 - High Sensitivity 2
- Full well capacity: Gain 0：47 ke- @ bin1, binning > 180 ke- ;
Gain 1：16 ke- @ bin1, binning > 64 ke- ;
Gain 2：8 ke- @ bin1, 14 bit binning > 32 ke-;
Gain 3：3ke- @ bin1, 14 bit binning > 12ke- - Readout noise (Standard): 3.2 e- @ Gain 0, 1.2 e- @ Gain 1, 1.0 e- @ Gain 2, 0.95 e- @ Gain 3
- Readout noise (LowNoise): 2.5 e- @ Gain 0, 1.0 e- @ Gain 1, 0.9 e- @ Gain 2, 0.85 e- @ Gain 3
- Frame Rate: 19 fps @ Standard Mode, 12 fps @ Low Noise Mode
- Shutter Mode: Rolling
- Exposure Time: 15 μs ~ 60 min
- Image Processing: DDFC, DPC
- ROI: Support
- Binning: 2，3，4，6，8，12，16，24
- Cooling Method: Air
- Cooling Temperature: Cooled to -25 °C @ Ambient temperature (22 °C)
- Trigger Mode: Hardware, Software
- Output Trigger Signals: Exposure start, Global, Readout end, High level, Low level
- Trigger Interface: Hirose
- SDK: C, C++, C#
- Data Interface: USB 3.0
- Software: Mosaic, SamplePro, LabVIEW, MATLAB, Micromanager
- Optical Interface: C-Mount, Customizable
- Bit Depth: 14 bit, 16 bit
- Power: 12 V / 6 A
- Power Consumption: ≤ 40 W
- Dimensions: 76 mm x 76 mm x 98.5 mm
- Camera Weight: 835 g
- Operating System: Windows / Linux
- Operating Environment: Working: Temperature 0 ~ 40 °C , Humidity 10 ~ 85 %
Storage: Temperature -10 ~ 60 °C , Humidity 0 ~ 85 %
